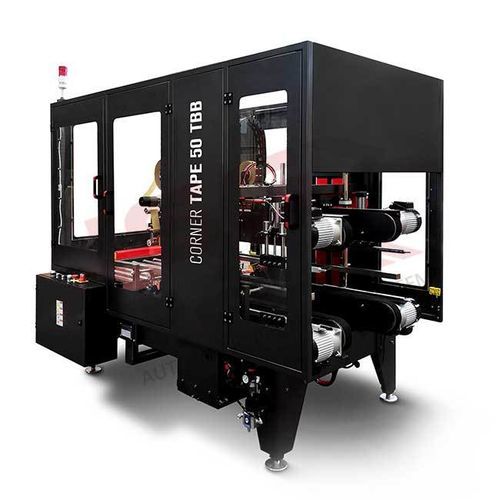

Adhesive tape taping machine 50 TBB

automatic

Description
The Corner Tape 50 TBB is an automatic corner taping machine designed to apply four U-shaped strips of self-adhesive tape to the top and bottom of American-style boxes. Boxes are transported on a motorized roller conveyor toward a pneumatic pusher that rotates them 90° and directs them to four taping heads. After tape application, pneumatic cylinders lower the flaps to complete hermetic sealing. The machine is suitable for integration into unmanned automated packaging lines.

Operation details
The machine is adjustable for multiple box formats: the operator sets conveyor width and worktop height according to box dimensions. Motorized rollers feed the box to a sensor that triggers the pneumatic pusher and initiates the 90° rotation. Four taping heads apply U-shaped strips; air cylinders then lower the flaps to seal the package. Compatible with kraft, polypropylene and PVC adhesive tapes. Designed for continuous operation in packaging or distribution environments.

Applications

• Integration in automated packaging and fulfillment lines
• Medium-volume distribution and logistics packing stations
• Manufacturing lines requiring top/bottom hermetic sealing of cartons

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support available for purchase
• Excellent value for money
• 12-month warranty on spare parts
• Quick delivery / short lead times
• Company present on the market for over 35 years

Features and parameters

• Model: Corner Tape 50 TBB
• Brand: ISGPACK
• Machine weight (net): 480 kg
• Supply voltage: 220 V, single phase
• Power frequency: 50 / 60 Hz
• Installed power: 1 kW
• Air pressure required: 6 bar
• Air consumption: 11 Nl/min
• Box transfer speed: 19 m/min
• Taping speed: 4–6 boxes/min
• Max box weight: 30 kg
• Compatible adhesive tapes: Kraft, polypropylene, PVC
• Standard taping head widths: 50–75 mm
• Max noise level: ≤ 75 dB
• Emergency stop (mushroom) compliant with CE regulations
• Worktop height: 600–750 mm

Product information (summary)
Machine dimensions: L 2168 x W 1373 x H 1335–1485 mm
Net weight: 480 kg
Supply voltage: 220 V 1Ph
Power frequency: 50 / 60 Hz
Installed power: 1 kW
Air pressure: 6 bar
Air consumption: 11 Nl/min
Taping speed: 4–6 boxes/min
Transfer speed: 19 m/min
Work surface height: H 600–750 mm
Minimum box size: L 340 x W 200 x H 200 mm
Maximum box size: L 670 x W 470 x H 500 mm
Type of boxes: American style
