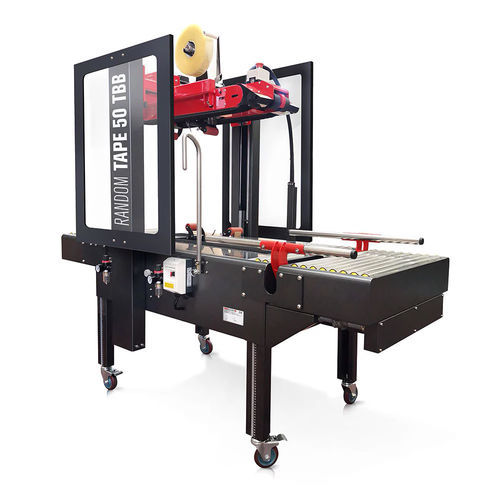

Multi-flap carton sealer Random Tape 50 TBB
adhesive tapesemi-automatic

multi-flap carton sealer
multi-flap carton sealer
multi-flap carton sealer
multi-flap carton sealer
multi-flap carton sealer
multi-flap carton sealer
multi-flap carton sealer
multi-flap carton sealer
multi-flap carton sealer
multi-flap carton sealer
multi-flap carton sealer
Add to favorites
Compare this product


Characteristics

Flaps
multi-flap
Sealing mode
adhesive tape
Other caracteristic
semi-automatic
Throughput

Max.: 15 p/min

Min.: 10 p/min

Description

DESCRIPTION Self-dimensioning carton sealer ideal for taping high and short or unstable cardboard boxes Semi-automatic ans self- dimensioning carton sealer with four feeding flat belts (two upper and two lower)wich seals the top and the bottom of variable size boxes with adhesive tape.This carton sealer is particulary suited for tall or unstable boxes. The operator squares the box,folds the bottom flaps ,inserts it in the centering /holding unit where the box can be filled without having to keep it with his hands,folds the top flaps.Thereafter,he guides it into the machine wich activates the microswitch of the upper taping head wich rises to the heightof the box.while the boxes pass through the machine,the top and the bottom flaps will be sealed by the taping heads simultaneously. Machine includes infeed center rollers and outfeed rollers. TECHNICAL FEATURES Machine dimensions: L 1964 x W 946 x H 1470/1630 mm Net weight: 280 Kg. Power supplyç: 220 Volt Power supply frequency: 50/60 Hz Installed power: 0,4 kW Electrical protection: IP 54 Air pressure: 6 bar Air consumption: 7 Nlitri/min Maximum noise: 75 dB Taping head: 50 – 75 mm Closing system: Tape Adhesive tape: Kraft, polipropilene, pvc Sealing speed: Fino a 15 scatole min Transfer speed: 22 mt/min Working table height: L 150 x W 180 x H 130 mm Max product size: L ∞ x W 580 x H 600 mm Type of boxes: American type
