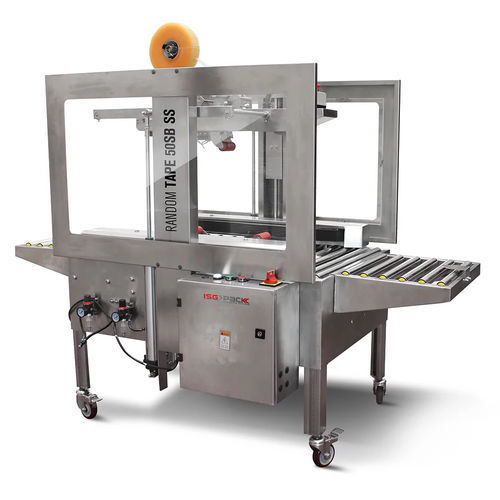

Double-flap carton sealer Random Tape 50 SB SS
adhesive tapeautomatic

double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
double-flap carton sealer
Add to favorites
Compare this product


Characteristics

Flaps
double-flap
Sealing mode
adhesive tape
Other caracteristic
automatic
Throughput

Max.: 15 p/min

Min.: 10 p/min

Description

DESCRIPTION Semi-automatic stainless carton sealer with self-sizing system is a simple and practical packing station. Semi-automatic and self-dimensioning carton sealer which seals the top and bottom of American-type variable size boxes with adhesive tape. The operator squares the boxes, folds the bottom flaps, fills the boxes, folds the top flaps, and then guides them into the machine where the centering/holding unit self-adjust to the box. Box feeding is regulated by two lateral belts. The top and the bottom flaps will be sealed simultaneously. The result is a perfect alignement of the flaps. Machine includes infeed and outfeed rollers and represents a practical and simple packaging station. TECHNICAL FEATURES Machine dimensions: L 2000 x W 1060 x H 1300/1550 mm Net weight: 250 Kg. Power supply: 220 Volt Power supply frequency: 50/60 Hz Installed power: 0,4 kW Electrical protection: IP 54 Air pressure: 6 bar Air consumption: 7 Nlitri/min Maximum noise: 75 dB Taping head: 50 – 75 mm Closing system: Top and the bottom Adhesive tape: Kraft, polipropilene, pvc Sealing speed: Fino a 15 scatole min Transfer speed: 20 mt/min Working table height: H 590/750 mm Dimension Min. product: L 150 x W 150 x H 120 mm Max product size: L ∞ x W 480 x H 500 mm Type of boxes: American type
