Multi-flap case sealer Easy Tape 50 SB
adhesive tapesemi-automatic

multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
multi-flap case sealer
Add to favorites
Compare this product


Characteristics

Flaps
multi-flap
Sealing mode
adhesive tape
Other caracteristic
semi-automatic
Throughput

Min.: 10 p/min

Max.: 15 p/min

Description

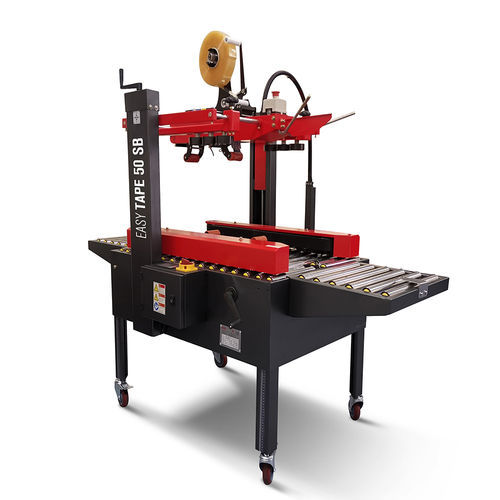

DESCRIPTION Semi-automatic Easy Tape 50 SB taping machine with automatic flap closer to facilitate the closure of the box. Semi-automatic manual dimensioning carton sealer, which seals the top and the bottom of American-type fixed size boxes, with adhesive tape. The machine is equipped with a 3 flaps closing system to facilitate the box closure and can be used by non-specialized operators because it requires easy adjustments. Box feeding is regulated by two lateral belts controlled by two motors, this system ensures the maximum sliding uniformity. The result is a perfect alignment of the box flaps and optimum sealing, performed by the efficient taping head. The carton sealer is equipped with an ‘Energy Saving’ timing stop system when box taping and sealing operation finishes. Includes infeed and outfeed rollers and represents a practical and simple packaging station. TECHNICAL FEATURES Machine dimensions: L 1940 x W 900 x H 1420 – 1510 mm Net weight: 250 Kg. Power supply: 220 Volt Power supply frequency: 50/60 Hz Installed power: 0,4 kW Electrical protection: IP 54 Maximum noise: 75 dB Taping head: 50 – 75 mm Closing system: Tape Adhesive tape: Kraft, polipropilene, pvc Sealing speed: Fino a 15 scatole min Transfer speed: 20 mt/min Working table height: H 590/750 mm Dimension Min. product: L150 x W 150 x H 100 mm Max product size: L ∞ x W 500 x H 500 mm Type of boxes: American type

Catalogs

No catalogs are available for this product.

See all of ISG PACK‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
