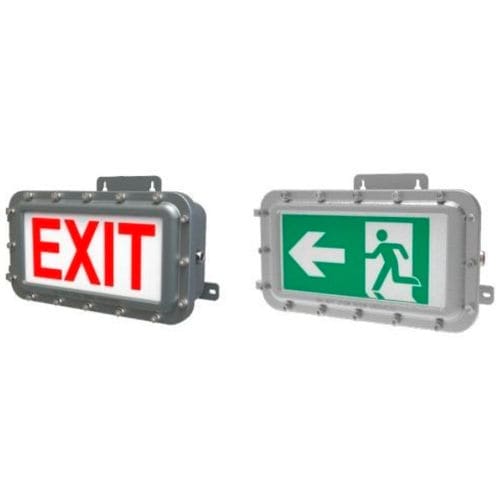

Emergency lighting JN-ATEX-Exit1Series

LEDIP67IK10

Short description
ATEX-certified explosion-proof LED exit luminaire designed for hazardous areas. Wall mounting; hinged access door; supplied with 3/4” NPT or M25 conduit hubs. Label content can be customized for multiple languages and exit sign variants.

Features

• Wall mounting available
• Hinged access door for easy maintenance
• Supplied with 3/4” NPT or M25 conduit hubs
• Customizable label content (multiple languages and exit sign variants)

Specification Details
Product SKU: JN-ATEX-Exit1Series
Power Consumption: 20 W
Input Voltage: AC100-277V (by driver and by IC)
Input Frequency: 50/60 Hz
Light Color: 2700K–6500K
LED Type: SMD
Total Lumens Output: 540–1,080 lm
Luminous Efficacy (lm/W): 140
Power Factor: >0.95
IK Impact Rating: IK08
Housing Colour: Grey
Housing Material: Die-casting Aluminium
Warranty Period (Years): 5
IP Rating: IP67
Color Rendering Index (CRI): >70
Beam Angle (°): 30°, 60°, 90°, 120°
Dimming Capability: Non-dimmable
ATEX Standard: II 2 G Ex db IIB+H2 T6 Gb; II2 D Ex tb IIIC T80°C Db
IECEx Standard: Ex db IIB+H2 T6 Gb; Ex tb IIIC T80°C Db
UL Standard: Class I, Division 2, Groups A, B, C, D; Class I, Zone 1, AEx eb mb IIC T6...T4 Gb; Class II, Division 1, Groups E, F, G
Retilap Standard: Esquema 5 RETILAP
Fixture Shape: Rectangular
Fixture Height (mm): 162 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 443 mm
Net Weight (kg): 18 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
IK Rating with Wire Guard: IK10 (with wire guard)
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10–95% RH
Lifespan (Hours): 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 162×270×443 mm
Net Weight (kg): 18 kg
Export Carton Dimensions (mm): 660×510×260 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 21 kg

Technical specifications

• SKU: JN-ATEX-Exit1Series
• Power Consumption: 20 W
• Voltage: AC100-277V (by driver and by IC)
• Input Frequency: 50/60 Hz
• Light Color: 2700K–6500K
• LED Type: SMD
• Lumens: 540–1,080 lm
• Efficacy: 140 lm/W
• Power Factor: >0.95
• IP Rating: IP67
• IK Rating: IK08 (IK10 with wire guard)
• Housing: Die-casting Aluminium, Grey
• CRI: >70
• Beam Angles: 30°, 60°, 90°, 120°
• Dimming: Non-dimmable
• ATEX / IECEx / UL Certifications: See specification details
• Fixture Shape & Size: Rectangular — 162×270×443 mm
• Net Weight: 18 kg
• Temperature Class: T6
• Gas Group: IIC
• Protection Type: Ex eb mb
• Zone Classification: Zone 1 & 2
• Working Temp Range: -20°C to +45°C
• Working Humidity: 10–95% RH
• Lifespan: 80,000 hours
