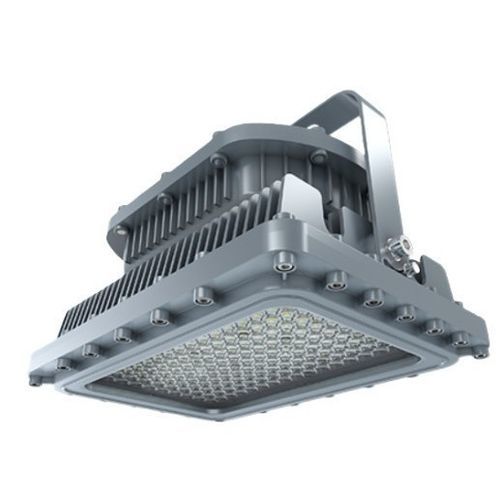

Light fixture JNFL-ATEX-A1-DSeries2

LEDindustrialIP67

Short description
Available with emergency back-up battery (back-up time: 3 hours).

Mounting methods

• Ceiling mounting
• Wall mounting
• Pole pendant (model D2 only)
• Diagonal pole mounting (model D2 only)
• Wall mounting with junction box (90°)

Product specifications
Product SKU: JNFL-ATEX-A1-DSeries2 (100W)
Power Consumption: 100 W
Input Voltage: 100-277VAC; 200-480VAC; 12-48VDC
Input Frequency: 50/60Hz
Light Color: 2200K-7000K
LED Type: SMD
Total Lumens Output: 13,500 lm
Luminous Efficacy (lm/W): 140
Power Factor: >0.95
IK Impact Rating: IK08 (Glass cover)
Housing Colour: Grey
Housing Material: Copper free aluminium, tempered glass
Warranty Period (Years): 5
IP Rating: IP67
Color Rendering Index (CRI): >70
Beam Angle (°): 40°, 60°, 90°, 120°
Dimming Capability: 0-10V (optional)
ATEX Standard: II 2 G Ex eb mb IIC T6...T4 Gb II 2 D Ex tb IIIC T80°C...T100°C Db II 3 G Ex ec IIC T6...T3 Gc II 2 D Ex tb IIIC T85℃...T103℃ Db
IECEx Standard: Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85℃...T103℃ Db
UL Standard: Class I, Division 2, Groups C, D / Class I, Division 2, Groups A, B, C, D / Class II, Division 1, Groups E, F, G / Class II, Division 2, Groups F, G / Class III
Retilap Standard: Esquema 5 RETILAP
Other Standards: UL1598, UL1598A, UL924, ETL, DLC, ABS, CSA, CB
Fixture Shape: Round
Fixture Height (mm): 129 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 400 mm
Net Weight (kg): 7 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
IK Rating with Wire Guard: IK10 (with wire guard)
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10-95% RH
Lifespan (Hours): 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 129×270×400 mm
Net Weight (kg): 7 kg
Export Carton Dimensions (mm): 400x385x335
Products per Carton: 1
Export Carton Gross Weight (kg): 9.5 kg

Technical features / specifications

• Power: 100 W
• Lumens: 13,500 lm
• Efficacy: 140 lm/W
• Input Voltage: 100-277VAC; 200-480VAC; 12-48VDC
• Input Frequency: 50/60Hz
• Light color temperature: 2200K–7000K
• LED type: SMD
• Power factor: >0.95
• CRI: >70
• Beam angles available: 40°, 60°, 90°, 120°
• Dimming: 0-10V (optional)
• IP rating: IP67
• IK rating: IK08 (glass) — IK10 with wire guard
• Housing: Copper free aluminium with tempered glass
• Housing colour: Grey
• Fixture shape: Round
• Dimensions (HxWxL): 129 × 270 × 400 mm
• Net weight: 7 kg
• Working temperature: -20°C to +45°C
• Working humidity: 10–95% RH
• Lifespan: 80,000 hours
• ATEX / IECEx / UL / RETILAP and other certifications: detailed in product specifications (see ATEX, IECEx, UL, Retilap, UL1598, UL1598A, UL924, ETL, DLC, ABS, CSA, CB)
