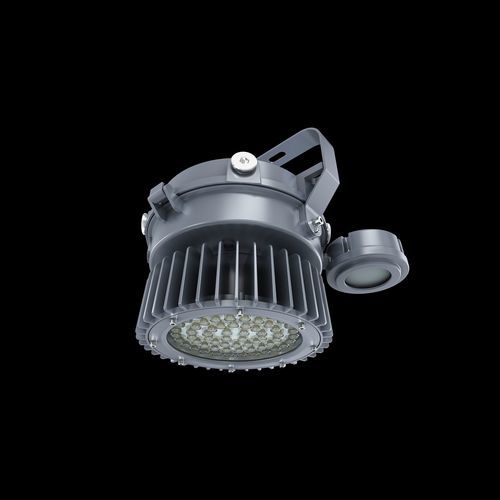

Light fixture JNHB-ATEX-GSeries2

LEDindustrialIP66

Short description
JNHB-ATEX-GSeries2 is a round explosion-proof LED luminaire for hazardous areas, offering 150W power, 19500 lm output and an adjustable color temperature range of 2700K–6500K. Suitable for Zone 1 & 2 applications with ATEX, IECEx, UL and RETILAP certifications. Available mounting options: bracket, ceiling, wall and pole. Optional microwave motion sensor.

Product specifications
Product SKU: JNHB-ATEX-GSeries2 (150W)
Power: 150 W
Total luminous flux: 19500 lm
Luminous efficacy: 140 lm/W
Input voltage: AC100–277V, AC220–480V
Frequency: 50/60 Hz
Color temperature: 2700K–6500K
LED: Philips Lumileds
Power factor: >0.95
IP rating: IP66
IK impact rating: IK08 (glass cover); IK10 with wire guard
Housing: Copper-free aluminium, tempered glass (grey)
Dimensions (HxWxL): 228×270×429 mm
Net weight: 12.6 kg
Operating temperature: -20°C to +45°C
Lifespan: 80,000 hours
ATEX: II 3 G Ex xR IIC T6...T4 Gc; II 2 D Ex tb IIIC T80°C...T130°C Db
IECEx: Ex xR IIC T6...T4 Gc; Ex tb IIIC T80°C...T130°C Db
UL: Class I Division 2 / Zone 1; Class II Division 1 as listed
Retilap: Esquema 5 RETILAP

Packaging & shipping
Product dimensions (mm): 228.5×270×429.3 mm
Net weight per unit: 12.6 kg
Export carton dimensions (mm): 400×480×300
Products per carton: 1
Export carton gross weight: 15 kg

Characteristics / Technical specifications

• Power: 150 W
• Lumens: 19500 lm
• Efficacy: 140 lm/W
• Voltage: AC100–277V, AC220–480V
• Frequency: 50/60 Hz
• Color temperature: 2700K–6500K
• LED: Philips Lumileds
• IP rating: IP66
• Impact rating: IK08 (glass); IK10 with wire guard
• Housing: Copper-free aluminium, tempered glass (grey)
• Weight: 12.6 kg
• Dimensions (HxWxL): 228×270×429 mm
• Certifications: ATEX / IECEx / UL / RETILAP
• Operating temperature: -20°C to +45°C
• Lifespan: 80,000 hours
