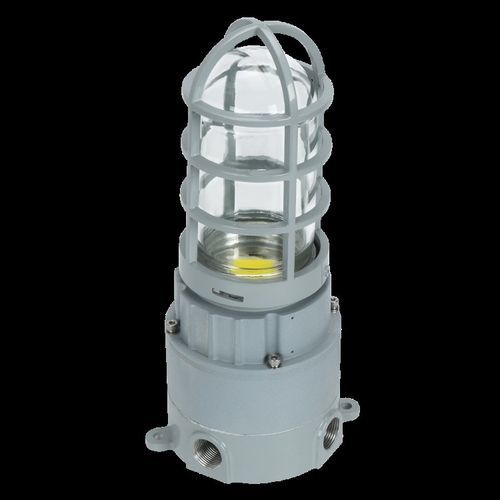

Light fixture JN-T-ATEX-OSeries

LEDindustrialIP67

Short description
ATEX-certified explosion-proof LED light for hazardous areas (Zone 1 & 2). Round JN-T-ATEX-OSeries 10W unit delivering 1200 lm with a 120° beam and selectable color temperature 2200K–7000K. Optional 3-hour emergency backup battery. Mounting: ceiling, pole pendant, wall with 90° junction box.

Product Specifications
Product SKU: JN-T-ATEX-OSeries (10W)
Power Consumption: 10 W
Input Voltage: 100–277 VAC, 50/60 Hz
Light Color: 2200K–7000K
LED Type: Philips Lumileds
Total Lumens Output: 1200 lm
Luminous Efficacy: 120 lm/W
Power Factor: >0.95
IK Impact Rating: IK08 (IK10 with wire guard)
Housing Colour: Grey
Housing Material: Copper-free aluminium, tempered glass
IP Rating: IP67
Color Rendering Index (CRI): >70
Beam Angle: 120°
Dimming: Non-dimmable
ATEX: II 2 G Ex eb mb IIC T6/T5/T4 Gb, II 2 D Ex tb IIIC T80°C/T95°C/T130°C Db
IECEx: Ex eb mb IIC T6/T5/T4 Gb, Ex tb IIIC T80°C/T95°C/T130°C Db
UL: Class I Division 2 (A,B,C,D); Class II Division 1 & 2 (E,F,G); Class III
RETILAP: Esquema 5 RETILAP
Fixture Shape: Round
Fixture Dimensions (HxWxL): 129 × 270 × 270 mm
Net Weight: 2.71 kg
Working Temp: -20°C to +45°C
Working Humidity: 10–95% RH
Lifespan: 80,000 hours
Warranty: 5 years

Packaging & Shipping
Product Dimensions (mm): 129×270×270 mm
Net Weight (kg): 2.71 kg
Export Carton Dimensions (mm): 370×270×240 mm
Products per Carton: 1
Export Carton Gross Weight: 3.2 kg

Technical features

• Power: 10 W
• Lumen output: 1200 lm
• Efficacy: 120 lm/W
• LED: Philips Lumileds
• Color temperature range: 2200K–7000K
• Beam angle: 120°
• IP rating: IP67
• IK impact rating: IK08 (IK10 with wire guard)
• Housing: Copper-free aluminium with tempered glass
• Dimensions (HxWxL): 129 × 270 × 270 mm
• Net weight: 2.71 kg
• Operating temperature: -20°C to +45°C
• Humidity: 10–95% RH
• Lifespan: 80,000 hours
• Warranty: 5 years
• Standards: ATEX (II 2 G / II 2 D), IECEx, UL, RETILAP Esquema 5
• Zone suitability: Zone 1 & 2
