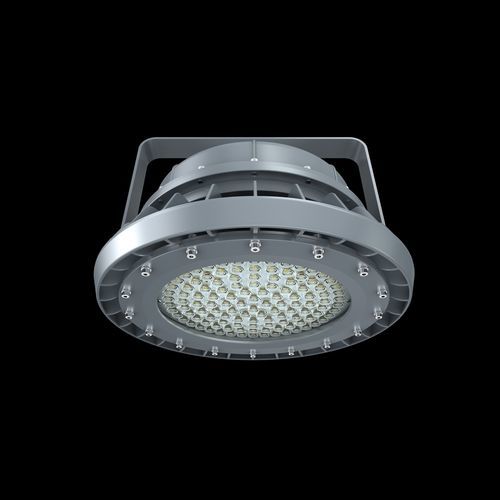

Ceiling-mounted lighting JN-HB-ATEX-BSeries3

LEDindustrialIP67

Short description
ATEX-certified explosion-proof LED luminaire for Zone 1 & 2 installations. Optional 3-hour emergency backup battery available. Designed for industrial environments with IP67 protection, multiple beam angles and wide color-temperature range.

Available mounting methods

• Ceiling mounting
• Wall mounting
• Hook pendant
• Pole pendant
• Ceiling mounting by opening the LED driver box
• Arm mounting by opening the LED driver box
• Stanchion mounting

Product specifications (table)
Product SKU: JN-HB-ATEX-BSeries3 (100W)
Power Consumption: 100 W
Input Voltage: 200-250V AC (Zone 1,2); 120-277 / 277-480 VAC (North America)
Input Frequency: 50/60 Hz
Light Color: 2200K–7000K
LED Type: SMD
Total Lumens Output: 14,000 lm
Luminous Efficacy (lm/W): 140 lm/W
Power Factor: >0.95
IK Impact Rating: IK08 (glass cover)
Housing Colour: Grey
Housing Material: Copper-free aluminium
Warranty Period (Years): 5
IP Rating: IP67
Color Rendering Index: >70
Beam Angle (°): 30°, 60°, 90°, 120°
Dimming Capability: 0-10V
ATEX Standard: II 2 G Ex eb mb IIC T6...T4 Gb II 2 D Ex tb IIIC T80°C...T100°C Db II 3 G Ex ec IIC T6...T3 Gc II 2 D Ex tb IIIC T85℃...T103℃ Db
IECEx Standard: Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85°C...T100°C Db
UL Standard: Class I, Division 2, Groups A, B, C, D / Class II, Division 1, Groups E, F, G / Class II, Division 2, Groups F, G / Class III
Retilap Standard: Esquema 5 RETILAP
Other Standards: UL1598, UL1598A, UL924, ETL, DLC, ABS, NSF, CB
Fixture Shape: Round
Fixture Height (mm): 176 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 370 mm
Net Weight (kg): 8.2 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
IK Rating with Wire Guard: IK10 (with Wire Guard)
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10-95% RH
Lifespan (Hours): 80,000 hours

Packaging & Shipping (summary)
Product Dimensions (mm): 176×270×370 mm
Net Weight (kg): 8.2 kg
Export Carton Dimensions (mm): 480×460×265 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 10.5 kg

Technical features

• Product SKU: JN-HB-ATEX-BSeries3 (100W)
• Power: 100 W
• Lumens: 14,000 lm
• Efficacy: 140 lm/W
• Voltage: 200-250V AC (Zone 1,2); 120-277 / 277-480 VAC (North America)
• Frequency: 50/60 Hz
• LED Type: SMD
• Beam angles: 30°, 60°, 90°, 120°
• Color temperature range: 2200K–7000K
• CRI: >70
• Dimming: 0–10V
• Power factor: >0.95
• IP rating: IP67
• IK rating: IK08 (glass cover); IK10 with wire guard
• Housing: Copper-free aluminium, grey
• Fixture shape: Round; dimensions: H176 × W270 × L370 mm
• Net weight: 8.2 kg
• Operating temperature: -20°C to +45°C
• Humidity: 10–95% RH
• Lifespan: 80,000 hours
• Certifications/standards: ATEX, IECEx, UL classifications (detailed above), Esquema 5 RETILAP, UL1598/1598A/924, ETL, DLC, ABS, NSF, CB
• Warranty: 5 years
