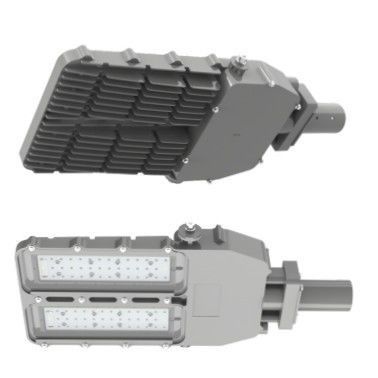

LED floodlight JN-ATEX-StreetlightSeries1

explosion-prooffor hazardous areasIP67

Short description
ATEX-certified explosion-proof LED floodlight with ADC12 aluminium housing, stainless-steel fasteners and multiple beam-angle options for Zone 1 & 2 hazardous areas.

Features

• ATEX explosion-proof LED light, 100 W, 14,000 lm
• Beam angle options: 40°, 60°, 90°, 120°
• Ingress protection: IP67
• Correlated color temperature: 2700K–6500K
• LED type: SMD
• Dimming: 0–10V optional

Product specifications
Product SKU: JN-ATEX-StreetlightSeries1 (100W)
Power consumption: 100 W
Input voltage: AC 120–277 V, 50/60 Hz
Input frequency: 50/60 Hz
Light color: 2700K–6500K
LED type: SMD
Total luminous flux: 14,000 lm
Luminous efficacy: 130 lm/W
Power factor: >0.95
IK impact rating: IK07 (without wire guard); IK09 (with wire guard)
Housing colour: Grey
Housing material: ADC12 aluminium
Warranty: 5 years
IP rating: IP67
Color rendering index (CRI): >70
Beam angles: 40°, 60°, 90°, 120°
Dimming capability: 0–10V optional
ATEX standard: ZONE 1 II 2 G Ex eb mb IIC T6...T4 Gb; II 2 D Ex tb IIIC T95°C...T125°C Db IP; ZONE 2 II 3G Ex ec mb IIC T6...T4 Gc II 2D Ex tb IIIC T80°C...T125°C
IECEx standard: ZONE 1 Ex eb mb IIC T6...T4 Gb; Ex tb IIIC T95°C...T125°C Db IP; ZONE 2 Ex ec mb IIC T6...T4 Gc Ex tb IIIC T80°C...T125°C
UL standard: Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; Class III
Additional standards: UL1598, UL1598A, UL924, ETL, ABS; RETILAP Esquema 5
Fixture shape: Rectangular
Dimensions (H×W×L): 72×270×550 mm
Net weight: 10.5 kg
Temperature class: T6
Gas group: IIC
Protection type: Ex eb mb
Zone classification: Zone 1 & 2
Operating temperature: -20°C to +45°C
Operating humidity: 10–95% RH
Lifespan: 80,000 hours

Packaging & Shipping
Product dimensions (mm): 72×270×550 mm
Net weight (kg): 10.5 kg
Export carton dimensions (mm): 692×388×125 mm
Products per carton: 1
Export carton gross weight (kg): 10.5 kg

Technical specifications

• Power: 100 W
• Lumens: 14,000 lm
• Efficacy: 130 lm/W
• Voltage: AC 120–277 V, 50/60 Hz
• LED type: SMD
• CRI: >70
• Power factor: >0.95
• IP rating: IP67
• IK rating: IK07 (without wire guard) / IK09 (with wire guard)
• Housing: ADC12 aluminium, grey
• Dimensions (H×W×L): 72×270×550 mm
• Weight: 10.5 kg
• Operating temperature: -20°C to +45°C
• Lifespan: 80,000 hours
