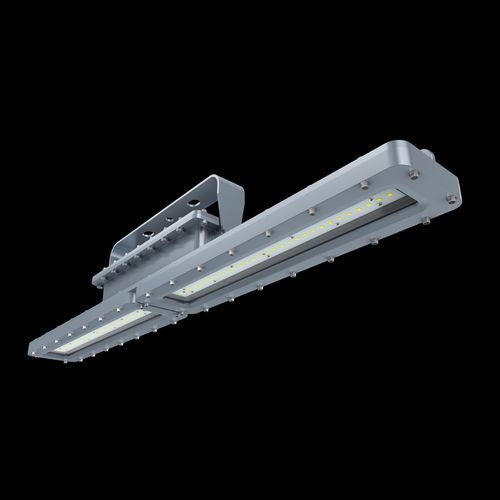

Light fixture JN-ATEX-LinearCSeries2

LEDfor miningindustrial

Short description
ATEX-certified explosion-proof LED linear luminaire for hazardous areas (Zone 1 & 2). Model JN-ATEX-LinearCSeries2 delivers 14000 lm at 100 W with a 120° beam, IP67 protection and selectable color temperature 2200K–6500K.

Key features

• Power: 100 W; Total luminous flux: 14000 lm; Efficacy: 140 lm/W
• Beam angle: 120°; CRI >70
• Input voltage: AC100-277V; 200-480VAC; 12-36VDC; Frequency: 50/60Hz
• IP67 enclosure; IK08 (glass cover); IK10 with wire guard
• Housing: copper-free aluminium with tempered glass; Colour: grey
• Optional dimming: 0-10V
• Service life: 80,000 hours; Warranty: 5 years

Technical specifications

• Product SKU: JN-ATEX-LinearCSeries2 (100W)
• Power Consumption: 100 W
• LED Type: Philips Lumileds
• Light Color: 2200K-6500K
• Luminous Efficacy: 140 lm/W
• Power Factor: >0.95
• IP Rating: IP67
• IK Rating: IK08 (glass cover); IK10 with wire guard
• Housing Material: Copper-free aluminium, tempered glass
• Dimensions (H×W×L): 133×270×1184 mm
• Net Weight: 18.5 kg
• Working Temp: -20°C to +45°C; Working Humidity: 10-95% RH
• Lifespan: 80,000 hours
• Temperature Class: T6; Gas Group: IIC; Protection Type: Ex eb mb
• Zone Classification: Zone 1 & 2

Mounting & installation
Multiple mounting options available to fit industrial layouts: ceiling, wall, pole bracket, pendant, chain. Installation must follow local explosion-proof wiring and grounding standards and be performed by qualified personnel.

Certifications & applications

• ATEX: II2 G Ex db IIB T4 Gb, II2 D Ex tb IIIC, T63.5°C Db IP65
• IECEx: Ex db IIB T4 Gb, Ex tb IIIC, T63.5°C Db IP65
• UL: Class I/II/III (see product sheet for divisions/groups)
• Other: RETILAP Esquema 5; CB (DE 2-038462-M1); UL1598; UL1598A; UL924; ETL; ABS; DLC; 1000h salt spray; 5G vibration
• Recommended for oil & gas, chemical and petrochemical plants, mining, offshore platforms and other hazardous industrial areas
