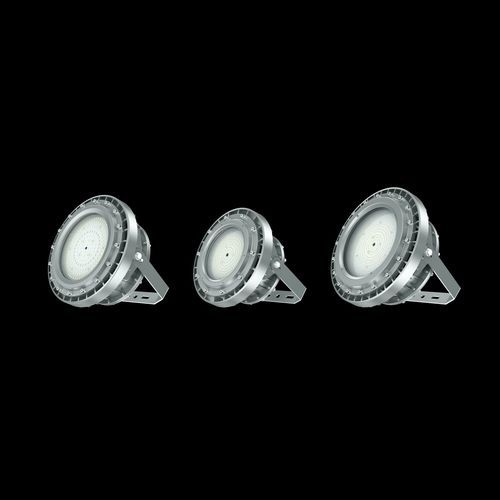

LED lighting JNHB-ATEXCSeries1

industrialIP66IK10

Short description
Available with emergency back-up battery (back-up time: 3 hours). Available mounting methods: ceiling mounting, wall mounting, hook pendant, pole pendant, diagonal pole mounting, wall mounting with junction box (90°).

Features

• Emergency back-up battery option (3 hours)
• Multiple mounting methods: ceiling mounting, wall mounting, hook pendant, pole pendant, diagonal pole mounting, wall mounting with junction box (90°)
• Available beam angles: 40°, 60°, 90°, 120°
• Wide colour temperature range: 2200K–7000K
• High ingress protection: IP66

Product specifications
Product SKU: JNHB-ATEXCSeries1 (100W)
Power Consumption: 100 W
Input Voltage: 120-277 / 150-250VAC / 12-48VDC
Input Frequency: 50/60 Hz
Light Color: 2200K-7000K
LED Type: SMD
Total Lumens Output: 8400 lm
Luminous Efficacy (lm/W): 140 lm/W
Power Factor: >0.95
IK Impact Rating: IK08 (Glass cover)
Housing Colour: Grey
Housing Material: Copper free aluminium, tempered glass
Warranty Period (Years): 5
IP Rating: IP66
Color Rendering Index: >70
Beam Angle (°): 40°, 60°, 90°, 120°
Dimming Capability: Non-dimmable
ATEX Standard: II 2 G Ex db llB T6...T3 Gb, II 2 D Ex tb IIC T80°C...T195°C Db
IECEx Standard: Ex db lIB T6...T3 Gb, Ex tb IIIC T80°C...T195°C Db
UL Standard: Class I, Division 2, Groups C, D / Class I, Division 1, Groups A, B, C, D / Class II, Division 1, Groups E, F, G / Class II, Division 2, Groups F, G / Class III
Retilap Standard: Esquema 5 RETILAP
Fixture Shape: Round
Fixture Height (mm): 254 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 406 mm
Net Weight (kg): 14 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
IK Rating with Wire Guard: IK10 (with Wire Guard)
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10-95% RH
Lifespan (Hours): 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 254×270×406mm
Net Weight (kg): 14 kg
Export Carton Dimensions (mm): 479x470x345
Products per Carton: 1
Export Carton Gross Weight (kg): 16 kg
Fixture Height (mm): 254
Fixture Width (mm): 270
Fixture Length (mm): 406

Technical specifications

• Power: 100 W
• Total Lumens: 8400 lm
• Efficacy: 140 lm/W
• Input Voltage: 120-277 / 150-250VAC / 12-48VDC
• Frequency: 50/60 Hz
• Light Color: 2200K–7000K
• LED Type: SMD
• IP Rating: IP66
• IK Rating: IK08 (glass) / IK10 with wire guard
• Housing: Copper free aluminium, tempered glass
• Warranty: 5 years
• Temperature Class: T6
• Zone: Zone 1 & 2
• Lifespan: 80,000 hours
