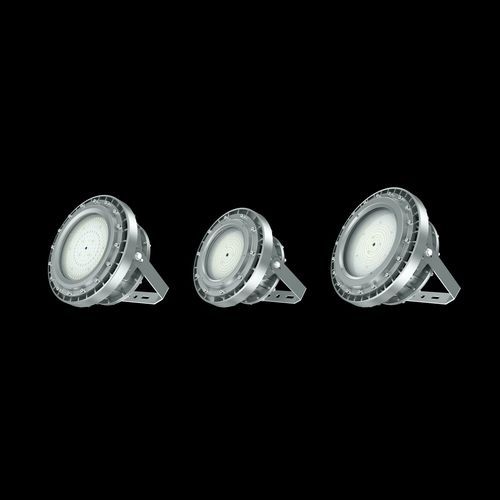

Light fixture JNHB-ATEXCSeries1

LEDindustrialIP66

Short description
ATEX-rated explosion-proof LED luminaire JNHB-ATEXCSeries1, 150 W, 11,200 lm, designed for hazardous areas (Zone 1 & 2). Available with a 3-hour emergency back-up battery. Multiple mounting options: ceiling, wall, hook pendant, pole pendant, diagonal pole, and wall with junction box (90°).

Features

• Certified for hazardous locations (ATEX / IECEx / UL certified variants)
• High luminous output with selectable beam angles: 40°, 60°, 90°, 120°
• Optional emergency back-up battery (3 hours)
• Multiple industrial mounting options for flexible installation
• IP66 protection and robust housing for harsh environments

Product specifications
SKU: JNHB-ATEXCSeries1 (150W)
Power Consumption: 150 W
Input Voltage: 120–277 VAC / 150–250 VAC / 12–48 VDC
Input Frequency: 50/60 Hz
Light Color: 2200K–7000K
LED Type: SMD
Total Luminous Flux: 11,200 lm
Luminous Efficacy: 140 lm/W
Power Factor: >0.95
IK Impact Rating: IK08 (glass), IK10 with wire guard
Housing Colour: Grey
Housing Material: Copper-free aluminium, tempered glass
Warranty: 5 years
Ingress Protection: IP66
Color Rendering Index (CRI): >70
Beam Angle: 40°, 60°, 90°, 120°
Dimming: Non-dimmable
ATEX: II 2 G Ex db IIB T6...T3 Gb; II 2 D Ex tb IIIC T80°C...T195°C Db
IECEx: Ex db IIB T6...T3 Gb; Ex tb IIIC T80°C...T195°C Db
UL: Class I Div.2 Groups C,D; Class I Div.1 Groups A,B,C,D; Class II/III variants as listed
Retilap: Esquema 5 RETILAP
Fixture Shape: Round
Fixture Height: 254 mm
Fixture Width: 270 mm
Fixture Length: 406 mm
Net Weight: 14 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
Operating Temperature: -20°C to +45°C
Operating Humidity: 10–95% RH
Lifespan: 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 254 × 270 × 406
Net Weight (kg): 14
Export Carton Dimensions (mm): 479 × 470 × 345
Products per Carton: 1
Export Carton Gross Weight (kg): 16

Characteristics / Technical specifications

• SKU: JNHB-ATEXCSeries1
• Power: 150 W
• Luminous Flux: 11,200 lm
• Efficacy: 140 lm/W
• Beam options: 40°, 60°, 90°, 120°
• Color temperature: 2200K–7000K
• Input voltage: 120–277 VAC, 150–250 VAC, 12–48 VDC
• IP rating: IP66
• Housing: Copper-free aluminium with tempered glass
• IK rating: IK08 (glass); IK10 with wire guard
• Standards: ATEX / IECEx / UL as listed
• Operating temp.: -20°C to +45°C
• Lifespan: 80,000 hours
• Warranty: 5 years
