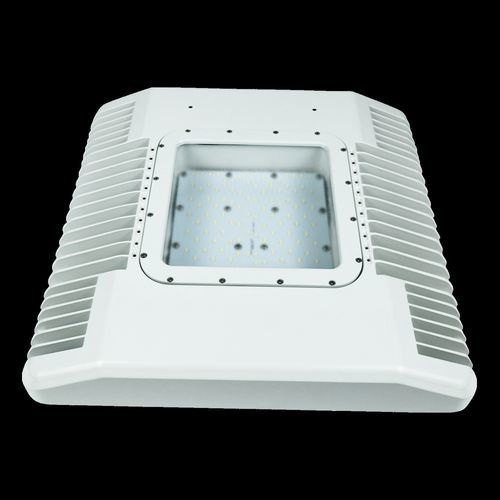

Light fixture JN-C-ATEX-CanopySeries

LEDindustrialIP66

Short description
Available mounting methods: stanchion mounting, pendant mounting

Features
ATEX explosion-proof LED canopy light, 120 W, 21000 lm, 120° beam angle, IP66 ingress protection, CCT 2200K–7000K. Suitable for hazardous areas (Zone 1 & 2) with ATEX, IECEx, UL and RETILAP certifications.

Product specifications
Product SKU: JN-C-ATEX-CanopySeries (120W)
Power Consumption: 120 W
Input Voltage: 100–277 VAC; 50/60 Hz
Input Frequency: 50/60 Hz
Light Color (CCT): 2200K–7000K
LED Type: Philips Lumileds
Total Lumens Output: 21000 lm
Luminous Efficacy: 140 lm/W
Power Factor: >0.95
IK Impact Rating: IK09 (IK10 with wire guard)
Housing Colour: Off-white
Housing Material: Copper-free aluminium, tempered glass
Warranty Period: 5 years
IP Rating: IP66
Color Rendering Index (CRI): >70
Beam Angle: 120°
Dimming Capability: Non-dimmable
ATEX Standard: II2 G Ex eb op is IIC T5/T6 GC, II2 D Ex op is tb IIIC T80°C Db
IECEx Standard: Ex ec op is IIC T6/T5/T4/T3 Gc, Ex op is tb IIIC T80°C/T95°C/T130°C/T195°C Db
UL Standard: Class I, Division 2, Groups A, B, C, D / Class II, Division 1, Groups E, F, G / Class II, Division 2, Groups F, G / Class III
RETILAP Standard: Esquema 5 RETILAP
Fixture Shape: Square
Fixture Height: 94 mm
Fixture Width: 270 mm
Fixture Length: 385 mm
Net Weight: 4 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10–95% RH
Lifespan: 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 94.6 × 270 × 385 mm
Net Weight (kg): 4 kg
Export Carton Dimensions (mm): 470 × 470 × 120 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 9 kg
Fixture Height (mm): 94
Fixture Width (mm): 270
Fixture Length (mm): 385

Technical specifications

• Power: 120 W
• Lumens: 21000 lm
• Efficacy: 140 lm/W
• Beam angle: 120°
• CCT: 2200K–7000K
• LED: Philips Lumileds
• IP Rating: IP66
• IK Rating: IK09 (IK10 with wire guard)
• Housing: Copper-free aluminium, tempered glass
• Weight: 4 kg
• Warranty: 5 years
• ATEX / IECEx / UL / RETILAP certifications as listed
• Working temperature: -20°C to +45°C
• Lifespan: 80,000 hours
