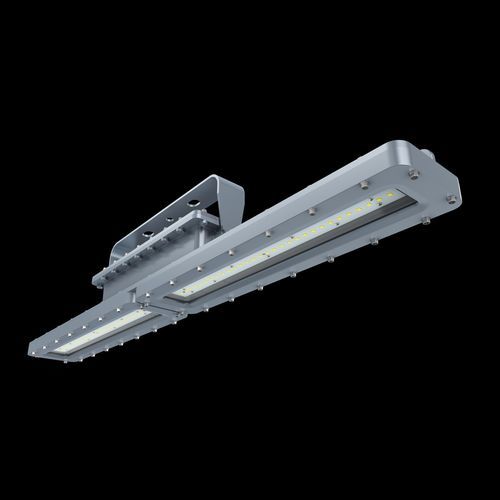

Light fixture JN-ATEX-LinearCSeries2

LEDfor storage hallfor workstations

Short description

• Available mounting methods: ceiling mounting
• wall mounting
• pole bracket mounting
• pendant mounting
• chain mounting

Product specifications
Product SKU: JN-ATEX-LinearCSeries2 (120W)
Power Consumption: 120 W
Input Voltage: AC100-277V; 200-480VAC; 12-36VDC
Input Frequency: 50/60 Hz
Light Color: 2200K-6500K
LED Type: Philips Lumileds
Total Lumens Output: 16800 lm
Luminous Efficacy (lm/W): 140 lm/W
Power Factor: >0.95
IK Impact Rating: IK08 (Glass cover)
Housing Colour: Grey
Housing Material: Copper free aluminium, tempered glass
Warranty Period (Years): 5
IP Rating: IP67
Color Rendering Index: >70
Beam Angle (°): 120°
Dimming Capability: 0-10V (optional)
ATEX Standard: II2 G Ex db IIB T4 Gb, II2 D Ex tb IIIC, T63.5°C Db IP65
IECEx Standard: Ex db IIB T4 Gb, Ex tb IIIC, T63.5°C Db IP65
UL Standard: Class I, Division 1, Groups C, D; Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; Class III
Retilap Standard: Esquema 5 RETILAP
Other Standards: CB (Ref. Certif. No.: DE 2-038462-M1); UL1598, UL1598A, UL924, ETL, ABS, DLC, 1000 Hours Salt Spray/ 5G Vibration
Fixture Shape: Rectangular
Fixture Height (mm): 133 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 1184 mm
Net Weight (kg): 18.5 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
IK Rating with Wire Guard: IK10 (wire guard)
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10-95% RH
Lifespan (Hours): 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 133×270×1184 mm
Net Weight (kg): 18.5 kg
Export Carton Dimensions (mm): 1360x340x265 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 21.5 kg
Fixture Height (mm): 133 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 1184 mm

Technical features / specifications

• SKU: JN-ATEX-LinearCSeries2 (120W)
• Power: 120 W
• Lumens: 16800 lm
• Efficacy: 140 lm/W
• Beam angle: 120°
• Light color: 2200K-6500K
• LED type: Philips Lumileds
• Input voltage: AC100-277V; 200-480VAC; 12-36VDC
• Input frequency: 50/60 Hz
• IP rating: IP67
• IK rating: IK08 (glass cover); IK10 with wire guard
• Housing: Copper free aluminium, tempered glass
• Warranty: 5 years
• ATEX/IECEx/UL standards: See full specification lines
• Operating temperature: -20°C to +45°C
• Humidity range: 10-95% RH
• Lifespan: 80,000 hours
• Dimensions (HxWxL): 133×270×1184 mm
• Net weight: 18.5 kg
