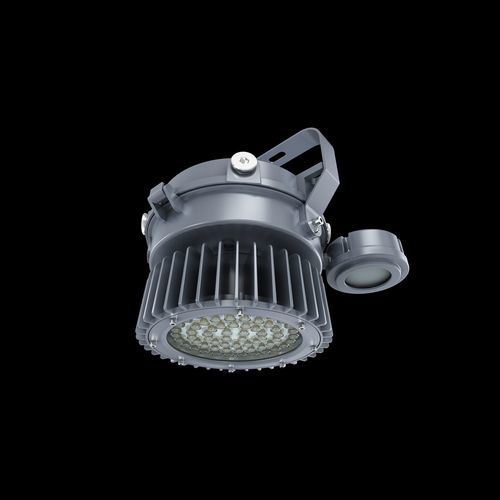

Light fixture JNHB-ATEX-GSeries2

LEDindustrialIP66

Overview
ATEX-certified explosion‑proof LED luminaire JNHB-ATEX-GSeries2 designed for use in Zone 1 & 2 hazardous areas. Rated 100 W with 13,000 lm output, adjustable color temperature 2700–6500K and IP66 ingress protection.

Key features

• Power: 100 W; Total luminous flux: 13,000 lm
• Color temperature range: 2700–6500K
• LED source: Philips Lumileds; luminous efficacy 140 lm/W
• IP66 enclosure; IK08 glass cover (IK10 with wire guard)
• Housing: copper‑free aluminium with tempered glass; grey finish
• Mounting: bracket ceiling, ceiling, wall, pole; microwave motion sensor optional
• Operating range: -20°C to +45°C; humidity 10–95% RH
• Designed for continuous industrial operation; lifespan approx. 80,000 hours

Certifications & standards

• ATEX: II 3 G Ex xR IIC T6...T4 Gc; II 2 D Ex tb IIIC T80°C...T130°C Db
• IECEx: Ex xR IIC T6...T4 Gc; Ex tb IIIC T80°C...T130°C Db
• UL: Class I Division 2 (Groups A,B,C,D); Class I Zone 1 AEx eb mb IIC T6...T4 Gb; Class II Division 1 (E,F,G)
• Retilap: Esquema 5 RETILAP

Technical specifications

• SKU: JNHB-ATEX-GSeries2 (100W)
• Power consumption: 100 W
• Input voltage: AC100–277V or AC220–480V
• Frequency: 50/60 Hz
• LED type: Philips Lumileds
• Total lumen output: 13,000 lm; Efficacy: 140 lm/W
• Power factor: >0.95; CRI >70
• Beam angles: 30°, 60°, 90°, 120°
• Dimming: non‑dimmable
• IK rating: IK08 (glass cover); IK10 with wire guard
• Dimensions (H×W×L): 228×270×429 mm (fixture)
• Net weight: 12.6 kg
• Working temperature: -20°C to +45°C; Humidity: 10–95% RH
• Lifespan: approx. 80,000 hours; Warranty: 5 years

Mounting & installation
Mounting options include bracket ceiling, recessed ceiling, wall and pole mounting. Provide installation instructions consistent with ATEX category and local electrical codes. Optional microwave motion sensor available for presence detection.

Packaging & shipping

• Product dimensions (mm): 228.5 × 270 × 429.3
• Net weight: 12.6 kg; Export carton: 400 × 480 × 300 mm
• Products per carton: 1; Export carton gross weight: 15 kg

Applications

• Intended for hazardous industrial areas: oil & gas facilities, chemical plants, offshore platforms, refineries
• Also suitable for paint shops, grain handling, mining and other Zone 1 & 2 environments

Ordering information & warranty
Order using SKU JNHB-ATEX-GSeries2 (100W). Confirm required input voltage and beam angle on order. Standard warranty: 5 years. For lead times and shipping options, contact sales or local distributor.
