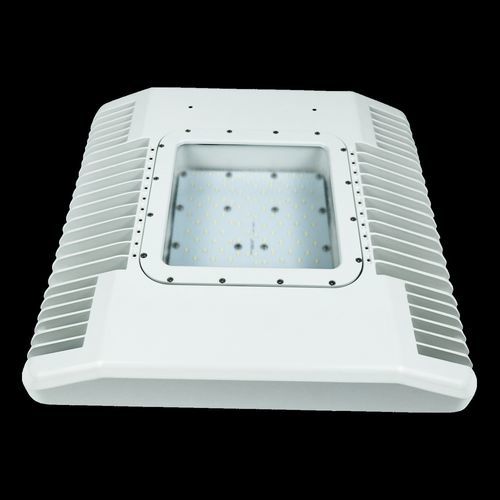

Light fixture JN-C-ATEX-CanopySeries

LEDindustrialIP66

Description
ATEX explosion-proof LED canopy light designed for hazardous areas (Zone 1 & 2). Suitable for stanchion mounting and pendant mounting; canopy form factor for general area illumination in industrial environments. Certified to ATEX, IECEx and UL standards for gas and dust atmospheres.

Product Specifications
Product SKU : JN-C-ATEX-CanopySeries (100W)
Power Consumption : 100 W
Input Voltage : 100-277VAC; 50/60Hz
Input Frequency : 50/ 60Hz
Light Color : 2200K-7000K
LED Type : Philips Lumileds
Total Lumens Output : 13000 lm
Luminous Efficacy (lm/W) : 140
Power Factor : >0.95
IK Impact Rating : IK09
Housing Colour : Off-white
Housing Material : Copper free aluminium, tempered glass
Warranty Period (Years) : 5
IP Rating : IP66
Color Rendering Index : >70
Beam Angle (°) : 120°
Dimming Capability : Non-dimmable
ATEX Standard : II2 G Ex eb op is IIC T5/T6 GC, II2 D Ex op is tb IIIC T80°C Db
IECEx Standard : Ex ec op is lIC T6/T5/T4/T3 Gc, Ex op is tb IIIC T80°C/T95°C/T130°C/T195°C Db
UL Standard : Class I, Division 2, Groups A, B, C, D / Class II, Division 1, Groups E, F, G / Class II, Division 2, Groups F, G / Class III
Retilap Standard : Esquema 5 RETILAP
Fixture Shape : Square
Fixture Height (mm) : 94 mm
Fixture Width (mm) : 270 mm
Fixture Length (mm) : 385 mm
Net Weight (kg) : 4 kg
Temperature Class : T6
Gas Group : IIC
Protection Type : Ex eb mb
Zone Classification : Zone 1 & 2
IK Rating with Wire Guard : IK10 (with wire guard)
Working Temperature Range : -20°C to +45°C
Working Humidity Range : 10-95% RH
Lifespan (Hours) : 80,000 hours

Packaging & Shipping
Product Dimensions (mm) : 94.6×270×385 mm
Net Weight (kg) : 4 kg
Export Carton Dimensions (mm) : 470x470x120
Products per Carton : 1
Export Carton Gross Weight (kg) : 9 kg
Fixture Height (mm) : 94 mm
Fixture Width (mm) : 270 mm
Fixture Length (mm) : 385 mm

Technical characteristics

• Power: 100 W
• Total luminous flux: 13,000 lm
• Efficacy: 140 lm/W
• Voltage: 100-277VAC, 50/60Hz
• Beam angle: 120°
• Light colour: 2200K–7000K
• LED type: Philips Lumileds
• IP rating: IP66
• CRI: >70
• Warranty: 5 years
• Lifespan: 80,000 hours
• Housing: Copper free aluminium with tempered glass
• Net weight: 4 kg
• Dimensions (HxWxL): 94 × 270 × 385 mm
• Zone classification: Zone 1 & 2 (ATEX/IECEx/UL certified variants)
