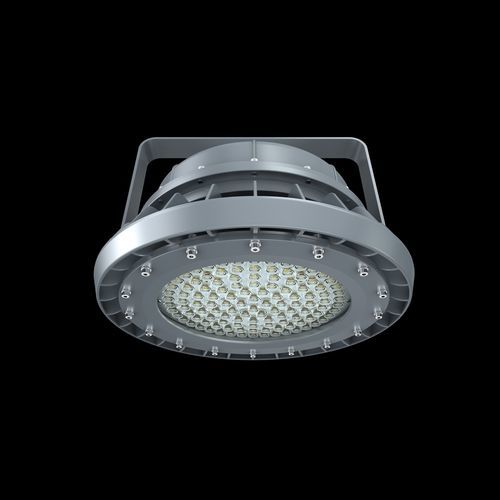

Light fixture JN-HB-ATEX-BSeries3

LEDoutdoorindustrial

Short description
Designed for hazardous areas (Zone 1 & 2), this ATEX-rated explosion-proof LED luminaire JN-HB-ATEX-BSeries3 delivers 120 W and 16,000 lm with selectable beam angles and a wide color temperature range. Optional 3-hour emergency back-up battery is available.

Available mounting methods

• Ceiling mounting
• Wall mounting
• Hook pendant
• Pole pendant
• Ceiling mounting by opening the LED driver box
• Arm mounting by opening the LED driver box
• Stanchion mounting

Product Specifications (table)
Product SKU: JN-HB-ATEX-BSeries3 (120W)
Power Consumption: 120 W
Input Voltage: 200-250V AC (Zone 1,2); 120-277/277-480VAC (North America)
Input Frequency: 50/60 Hz
Light Color: 2200K-7000K
LED Type: SMD
Total Lumens Output: 16000 lm
Luminous Efficacy (lm/W): 140
Power Factor: >0.95
IK Impact Rating: IK08 (Glass cover)
Housing Colour: Grey
Housing Material: Copper free aluminium
Warranty Period (Years): 5
IP Rating: IP67
Color Rendering Index: >70
Beam Angle (°): 30°, 60°, 90°, 120°
Dimming Capability: 0-10V
ATEX Standard: II 2 G Ex eb mb IIC T6...T4 Gb II 2 D Ex tb IIIC T80°C...T100°C Db II 3 G Ex ec IIC T6...T3 Gc II 2 D Ex tb IIIC T85℃...T103℃ Db
IECEx Standard: Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85°C...T100°C Db
UL Standard: Class I, Division 2, Groups A, B, C, D/ Class II, Division 1, Groups E, F, G/ Class II, Division 2, Groups F, G/ Class III
Retilap Standard: Esquema 5 RETILAP
Other Standards: UL1598, UL1598A, UL924, ETL, DLC, ABS, NSF, CB
Fixture Shape: Round
Fixture Height (mm): 176 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 370 mm
Net Weight (kg): 8.2 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
IK Rating with Wire Guard: IK10 (with Wire Guard)
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10-95% RH
Lifespan (Hours): 80,000 hours

Packaging & Shipping (table)
Product Dimensions (mm): 176×270×370 mm
Net Weight (kg): 8.2 kg
Export Carton Dimensions (mm): 480x460x265 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 10.5 kg
Fixture Height (mm): 176
Fixture Width (mm): 270
Fixture Length (mm): 370

Technical features

• SKU: JN-HB-ATEX-BSeries3 (120W)
• Power: 120 W
• Lumens: 16,000 lm
• Efficacy: 140 lm/W
• Input Voltage: 200-250V AC (Zone 1,2); 120-277/277-480VAC (North America)
• Frequency: 50/60 Hz
• Light color temperature: 2200K - 7000K
• LED type: SMD
• PF: >0.95
• CRI: >70
• Beam angles: 30°, 60°, 90°, 120°
• Dimming: 0-10V
• IP rating: IP67
• IK rating: IK08 (glass); IK10 with wire guard
• Housing: Copper free aluminium, grey
• Fixture shape: Round (176×270×370 mm)
• Net weight: 8.2 kg
• Operating temperature: -20°C to +45°C
• Operating humidity: 10-95% RH
• Lifespan: 80,000 hours
• Certifications/standards: Esquema 5 RETILAP; ATEX, IECEx, UL (Class I/II/III variants), UL1598/1598A/924, ETL, DLC, ABS, NSF, CB
• Emergency option: Available with emergency back-up battery (3 hours)
• Mounting options: Ceiling, wall, hook pendant, pole pendant, ceiling/arm mounting via driver box, stanchion
