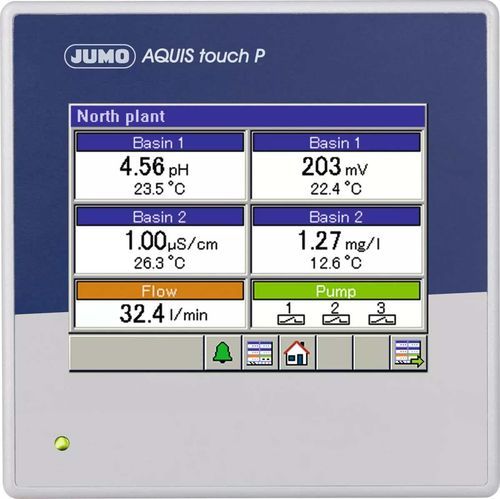

Multi-parameter controller JUMO AQUIS touch P

Overview
The JUMO AQUIS touch P is a modular platform for measuring, controlling, recording and displaying liquid analysis parameters. It supports pH/ORP, electrolytic conductivity, high‑purity water resistivity, temperature, disinfection measurands (free chlorine, total chlorine, chlorine dioxide, ozone, hydrogen peroxide, peracetic acid) and totalized flow. Designed for panel mounting (front dimensions 96 × 96 mm) and integration into automation environments.

Highlights

• 2 analysis inputs in any combination
• 10 configurable switching outputs (standard I/O)
• 7 slots for input/output modules; up to 15 additional measuring signals can be connected

General technical data (table)
Interfaces: Ethernet, USB host, USB device (setup), RS422/RS485 with Modbus protocol, PROFIBUS DP, PROFINET
Display/Input: 3.5-inch touchscreen
Functions: data monitor, recording function, web browser with online visualization, timer functions, math and logic functions, calibration routines and logs, Modbus master
Sensor connection: up to 6 additional JUMO digiLine sensors
Protection type: IP66 (front)
Mounting: Control cabinet/panel mounting (front dimensions 96 × 96 mm)
Approvals: cULus, DNV
Recommended application areas: water & wastewater, food & beverage (CIP/SIP), pharmaceuticals & biotechnology (USP, ASTM), drinking water technology, seawater desalination, process technology, swimming pool technology

Additional information
Standard equipment includes multiple inputs and outputs and a modular slot system enabling a wide range of process and sensor connections. Supports connection of JUMO digiLine sensors and multiple fieldbus interfaces for integration into automation and SCADA environments. PC software (PCA3000) and communication software (PCC) are available for evaluation and configuration.

Technical specifications

• Model name: JUMO AQUIS touch P
• Measured parameters: pH, redox (ORP), electrolytic conductivity, high‑purity water resistivity, temperature, disinfection measurands (free chlorine, total chlorine, chlorine dioxide, ozone, hydrogen peroxide, peracetic acid), totalized flow
• Inputs/Outputs: 10 I/O standard; 7 extension slots for input/output modules; 2 analysis inputs in any combination; up to 15 additional measuring signals can be connected
• Display: 3.5-inch touchscreen
• Interfaces: Ethernet, USB host, USB device (setup), RS422/RS485 (Modbus), PROFIBUS DP, PROFINET
• Functionality: data monitor, recording, web-based online visualization, timers, math and logic functions, calibration routines and logs, Modbus master
• Sensor connection: up to 6 JUMO digiLine sensors
• Protection class: IP66 (front)
• Mounting: panel mounting, front dimensions 96 × 96 mm
• Approvals / Certificates: cULus, DNV
• Recommended industries: water & wastewater, food & beverage, pharmaceuticals & biotechnology, drinking water, desalination, process technology, swimming pool systems
