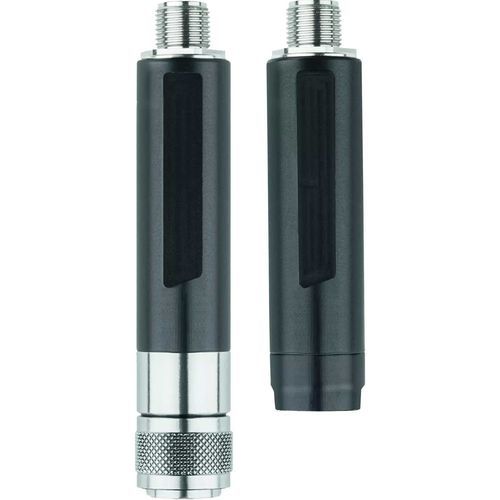

Analog output pH/ORP transmitter JUMO digiLine pH/ORP/T

with Fieldbus interfacedigitalFieldbus

Product description
The JUMO digiLine transmitter converts and transmits pH, ORP (redox) and temperature measurements from the sensor to measuring or automation devices. Available with digital bus communication (M12 5‑pole plug) or analog connection (8‑pole plug). The design allows separate replacement of sensor and electronics.

Short description
Digital or analog transmitter for pH/ORP/Temperature with plug‑in sensor connection.

Availability
In Stock

Highlights

• Sensor is easy to replace
• Reusable electronic components reduce waste
• Calibration data is retained on the sensor/electronics

Variants / Options (examples)

• Actual value output, user configurable
• RS485 Modbus option

Electrical connection / Mounting (examples)

• Suitable for electrodes with plug head N or plug head VP (separable)
• M12 5‑pole plug for digital versions; 8‑pole plug for analog versions

Outputs
Digital interface and one analog output (optional).

Features
Smart electronic components; bus‑compatible; Plug and Play; reusable design.

Protection and application
Protection: IP66 (M12); IP68 (plug head VP on the sensor). Applications: universal use in industrial process and lab environments.

Technical specifications

• Measurands: pH, ORP (redox), temperature
• Mounting: Compatible with electrodes with plug head N or plug head VP (separable)
• Outputs: Digital interface; 1 analog output optional
• Protection type: IP66 (M12); IP68 (plug head VP on the sensor)
• Features: Reusable electronics; bus compatibility; Plug and Play
• Variants: User‑configurable actual value output; RS485 Modbus
