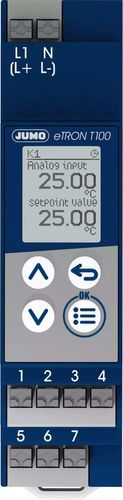

Electronic temperature controller JUMO eTRON T100

with LCD displaysingle-channelPID

Overview
The electronic thermostat for DIN-rail mounting is designed for temperature control and monitoring in industrial and rail applications. It accepts RTD probes, thermocouples, current inputs and special probes used in railway technology. The device is user-friendly and optionally available as a PID two-state controller.

Highlights

• Fast detection of process states for reliable control
• Compact DIN-rail housing for space-saving cabinet installation
• Capable of switching high-performance loads via relay and PhotoMOS®

Technical data
General technical data
Measuring inputs: Pt100, Pt1000, KTY2X-6; type J, type L, and type K thermocouples; 0(4) to 20 mA; NTC 5 kΩ (at 25 °C); Ni 1000 DIN 43760, Ni 1000 Landis+Gyr TK5000
Outputs: 1 relay (changeover contact 10 A); 1 PhotoMOS® relay
Display: Dot-matrix LCD display
Electrical connection: PUSH IN terminals
Mounting: On DIN rail 35 × 7.5 mm
Format (W × H × D): 22.5 mm × 93.5 mm × 61.6 mm
Special features: Data logger, service and operating hours counter, timer function; compliant with rail vehicle standards DIN EN 50155, DIN EN 50121, DIN EN 45545
Application areas: Industrial automation, HVAC, railway systems, building technology

Technical specifications

• Measuring inputs: Pt100, Pt1000, KTY2X-6; type J, L, K thermocouples; 0(4)-20 mA; NTC 5 kΩ (25 °C); Ni 1000 DIN 43760; Ni 1000 Landis+Gyr TK5000
• Outputs: 1 changeover relay (10 A) and 1 PhotoMOS® relay
• Display: Dot-matrix LCD
• Electrical connection: PUSH IN terminals
• Mounting: DIN rail 35 × 7.5 mm
• Dimensions (W×H×D): 22.5 × 93.5 × 61.6 mm
• Special features: Data logger, service/operating hours counter, timer, compliant with DIN EN 50155, DIN EN 50121, DIN EN 45545
• Application areas: Industry, HVAC, railway, building technology
