CIP conductivity transmitter JUMO CTI-750
for the food industryfor liquidswith temperature measurement

CIP conductivity transmitter - JUMO CTI-750 - JUMO GmbH & Co. KG - for the food industry / for liquids / with temperature measurement
CIP conductivity transmitter - JUMO CTI-750 - JUMO GmbH & Co. KG - for the food industry / for liquids / with temperature measurement
Add to favorites
Compare this product
Go to the JUMO GmbH & Co. KG website for more information

Characteristics

Applications
CIP, for the food industry, for liquids
Other characteristics
with temperature measurement

Description

Overview

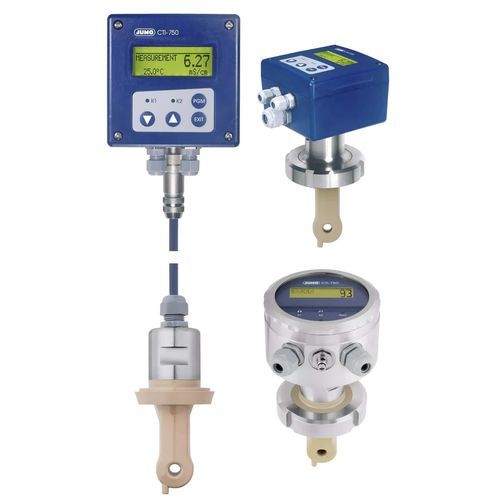

The JUMO CTI-750 is an inductive conductivity transmitter for measuring and controlling conductivity and solution concentration in liquid media. Integrated temperature measurement provides accurate and rapid temperature compensation. The transmitter includes functions designed for reliable operation in CIP/SIP processes.

Highlights
  • Activation of four measuring ranges
  • Fast-response temperature sensor
  • Concentration measurement with characteristic curve

Features
  • Own characteristic line for concentration display
  • Easy programming via setup software
  • Suitable for CIP and SIP applications

Technical specifications
  • Measured variables: Conductivity; concentration of NaOH, HNO3; temperature
  • Sensor material: PEEK or PVDF
  • Mounting: Pipe mounting, wall mounting
  • Outputs: 2 analogue outputs and 2 potential-free contacts
  • Versions: Combined unit (transmitter and measuring cell in one device); split version (transmitter and measuring cell connected via cable)
  • Protection rating: IP67
  • Applications: Food & beverage industry; CIP and SIP plants; concentration measurement of acids and caustic solutions
