SIL2 universal transmitter JUMO dTRANS T06

DIN rail

Overview

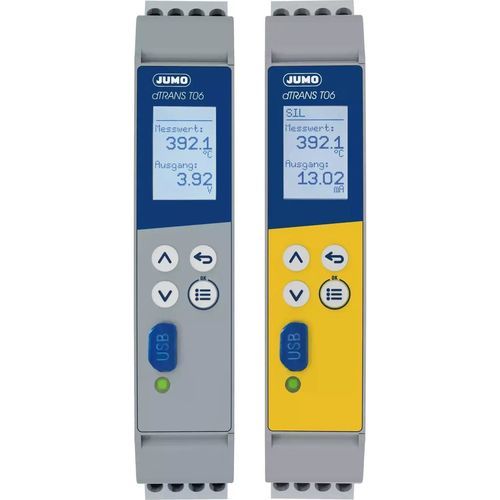

The JUMO dTRANS T06 is a multifunctional four-wire transmitter in a DIN-rail mounting case. It accepts RTD sensors, thermocouples (including double thermocouples) and standard voltage/current signals. Configuration can be performed on the device via USB or with the PC setup program.

Highlights

• SIL 2 / SIL 3 according to DIN EN 61508
• High galvanic signal isolation (1.8 kV)
• Universal input for multiple sensor types and standard signals

Technical data (table)
Galvanic isolation: 1.8 kV
Installation: Mounting rail / DIN rail 35 × 7.5 mm
Analog input: RTD (2-, 3- and 4-wire); thermocouple, double thermocouple; resistance potentiometer/WFG; resistance/potentiometer (2-, 3- and 4-wire); voltage 0 to 1(10) V; current 0(4) to 20 mA
Ambient temperature: -10 to +70 °C
Output: 0(2) to 10 V or 0(4) to 20 mA (invertible)
Special features: Universal input, on-device or USB configuration with setup program, optional RS485 (Modbus RTU) and relay output, intelligent functions (min/max indicator, operating hours counter, output simulation), sensor matching, customer-specific linearization, connection diagram in display
NAMUR compliance: NE43
Voltage supply (four-wire transmitter): AC 110–240 V, DC 24 V
Calibration accuracy: ±0.05 %
Configuration: On device via USB with PC setup program
Approvals: SIL / PL, cUL, DNV GL

Functionality / Interfaces

• Universal input for RTD, thermocouple (including double thermocouple), resistance/potentiometer, voltage and current signals
• Selectable output: voltage or current (invertible)
• USB interface for configuration via PC setup program
• Optional RS485 interface (Modbus RTU) and relay output for limit values

Technical specifications

• Model: JUMO dTRANS T06
• Galvanic isolation: 1.8 kV
• Installation: Mounting rail / DIN rail 35 × 7.5 mm
• Analog inputs supported: RTD (2-, 3-, 4-wire), thermocouple, double thermocouple, resistance potentiometer/WFG, resistance/potentiometer (2-, 3-, 4-wire), voltage 0 to 1(10) V, current 0(4) to 20 mA
• Ambient temperature range: -10 to +70 °C
• Outputs: 0(2)–10 V or 0(4)–20 mA (invertible)
• Special features: On-device or USB configuration, optional RS485 Modbus RTU, optional relay output, min/max indicator, operating hours counter, output simulation, sensor matching, customer-specific linearization, connection diagram in display
• Standards/approvals: SIL 2/SIL 3 (DIN EN 61508), PL c/d (ISO 13849) (option), cUL, DNV GL
• NAMUR compliance: NE43
• Voltage supply: AC 110–240 V, DC 24 V (four-wire transmitter)
• Calibration accuracy: ±0.05 %
• Configuration method: USB interface with PC setup program
