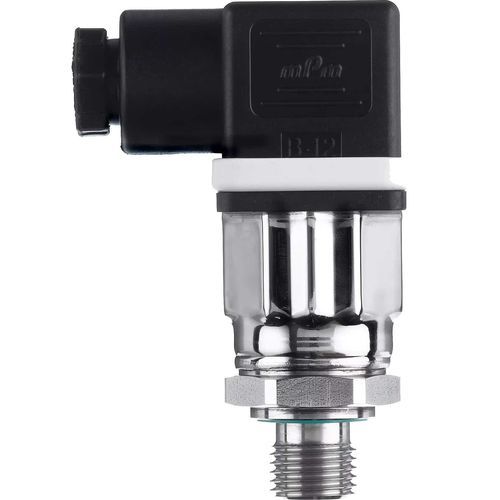

Relative pressure transmitter JUMO MIDAS S06

piezoresistivesiliconmembrane

Overview
This completely welded pressure transmitter is designed for industrial use in harsh environments and is suitable for low-pressure measurements and level monitoring. The piezoresistive silicon sensor with a stainless steel separating membrane provides reliable performance in process applications.

Highlights

• Parts in contact with the medium are made of stainless steel
• Straightforward mounting and standard process connections
• Low investment and maintenance costs

General technical data (table)
Measuring range (input): -400 to +400 mbar (relative pressure)
Output: 4–20 mA (two-wire) or 0–10 V DC (three-wire)
Accuracy (linearity): 0.3 to 0.35 %
Medium temperature: -20 to +100 °C
Process connection: standard industry screw connections
Measuring system: Piezoresistive silicon sensor with stainless steel separating membrane

Technical specifications

• Design: Completely welded pressure transmitter suitable for harsh conditions
• Application: Low-pressure measurement and level measurement
• Sensor type: Silicon (piezoresistive) with stainless steel separating membrane
• Measuring range: -400 to +400 mbar (relative pressure)
• Output signals: 4–20 mA (two-wire) or 0–10 V DC (three-wire)
• Accuracy (linearity): 0.3–0.35 %
• Medium temperature range: -20 to +100 °C
• Process connection: Standard industry screw connections
• Materials: Wetted parts in stainless steel
• Mounting: Straightforward mounting
• Cost: Low initial investment
