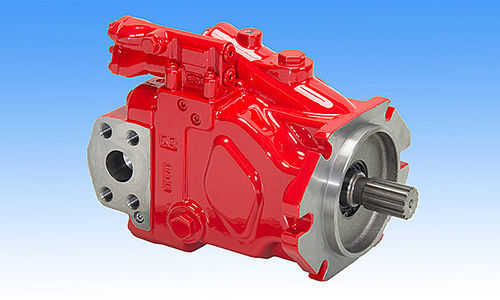

Hydraulic axial piston pump K3VLS series

open circuitopencompact

Product overview
The K3VLS series are variable displacement axial piston pumps (swash plate design) for open-loop hydraulic systems. Designed for mobile machinery and industrial vehicles, the series delivers compact installation size, reduced mass and flexible control options to match medium-pressure applications.

Features

• Efficient swash-plate design for improved volumetric and mechanical performance
• Compact and lightweight construction for flexible mounting in tight engine compartments
• Low noise operation suitable for mobile equipment
• Responsive and stable control characteristics across operating ranges

Specifications
Models: K3VLS 50 / K3VLS 65 / K3VLS 85 / K3VLS 105 / K3VLS 150
Rated displacement (cm3/rev): 50, 65, 85, 105, 150
Rated pressure (MPa): 28 (all models)
Peak pressure (MPa): 35 (all models)
Maximum self-priming speed (min-1): 2,700 / 2,600 / 2,500 / 2,300 / 2,200
Approx. mass (kg): 21 / 25 / 31 / 37 / 52

Control curve
Reference control curves illustrate typical pump response for load sensing, pressure cut-off and horsepower control settings; curves are provided for system tuning and selection.

Applications

• Wheel loaders
• Dozers
• Backhoe loaders
• Track loaders
• Crawler and rough-terrain cranes
• Truck-mounted cranes
• Crushers
• Asphalt pavers
• Forklift trucks
• Telehandlers
• Manlifts and fire engines
• Commercial trucks
• Tractors
• Combine harvesters
• Sprayers

Technical specifications

• Brand: Kawasaki Heavy Industries
• Product type: Variable displacement axial piston pump (swash plate), open loop
• Rated displacement range: 50–150 cm3/rev (models: 50, 65, 85, 105, 150)
• Rated pressure: 28 MPa
• Peak pressure: 35 MPa
• Maximum self-priming speed: up to 2,700 min-1 (model dependent)
• Approx. mass range: 21–52 kg depending on model
• Available control options: load sensing, pressure cut-off, horsepower control
• Key design points: high efficiency, compact/lightweight, low noise, responsive/stable control
• Typical applications: mobile machinery and industrial vehicles
