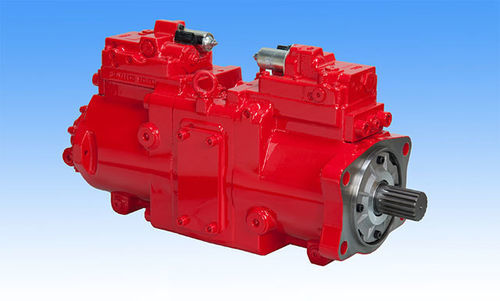

Hydraulic axial piston pump K7V series

open circuithigh-capacityvariable-displacement

Overview
The K7V series are variable displacement axial piston pumps of swash plate design for open-loop mobile hydraulic systems. They are used on mobile machinery such as excavators, cranes and wheel loaders. Kawasaki Heavy Industries technologies improve hydraulic efficiency and reduce noise; robust bearing capacity and a thicker shaft extend service life.

Features

• High pump efficiency
• Low noise
• High reliability
• High power density

Control Curve
Control curves and example graphs are provided to illustrate control performance and pump behavior under various operating conditions.

Applications

• Excavators
• Wheel loaders
• Crawler drills / pile drivers
• Cranes (crawler / rough terrain)
• Crushers
• Concrete pumps

Specifications (table)
Model: K7V63 | K7V125 | K7V140 | K7V160 | K7V180 | K7V240 | K7V280
Displacement (cm3): 65 | 130 | 140 | 160 | 180 | 242 | 280
Pressure (Rated, MPa): 35 (all models)
Pressure (Peak, MPa): 40 (all models)
Max Self Priming Speed (min-1): 2,650 | 2,360 | 2,200 | 2,100 | 2,000 | 2,100*1 | 1,800 [2,100]*1
Structure - Tandem: ◯ | ◯ | ◯ | ◯ | ◯ | - | ◯
Structure - Parallel: - | - | - | - | - | ◯ | -
Notation: *1 with impeller

Technical characteristics

• Design type: Variable-displacement axial piston pump, swash plate
• Manufacturer: Kawasaki Heavy Industries
• Models available: K7V63, K7V125, K7V140, K7V160, K7V180, K7V240, K7V280
• Displacement range: 65 to 280 cm³
• Rated pressure: 35 MPa (all models)
• Peak pressure: 40 MPa (all models)
• Max self-priming speed (min-1): model-specific (see table)
• Structure options: Tandem on most models; Parallel available on K7V240
• Key benefits: improved efficiency, reduced noise, extended service life via larger bearings and thicker shaft, high power density
• Typical applications: mobile machinery including excavators, wheel loaders, crawler drills/pile drivers, cranes, crushers and concrete pumps
