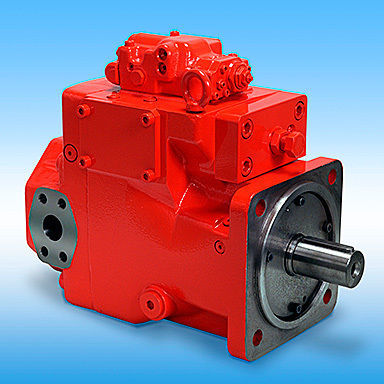

Hydraulic axial piston pump K7VG series

for industrial applicationsopen circuit

Product overview
The K7VG series are variable displacement axial piston pumps of swash plate design for heavy duty industrial equipment such as steel making plants and press machinery. Kawasaki's latest technologies for improving efficiency and lowering noise enable high pump efficiency and low noise levels. The adoption of heavy duty bearings provides long service life.

Features

• High pump efficiency
• Low noise
• High reliability
• Compatible with fire-resistant fluids
• Long life
• High rated pressure

Specifications

• K7VG180 — Displacement: 180 cm3; Rated pressure: 35 MPa; Peak pressure: 40 MPa; Max self-priming speed: 1,800 min-1; Mass (approx.): 150 kg
• K7VG265 — Displacement: 270 cm3; Rated pressure: 35 MPa; Peak pressure: 40 MPa; Max self-priming speed: 1,600 min-1; Mass (approx.): 215 kg
• K7VG500 — Displacement: 500 cm3; Rated pressure: 45 MPa; Peak pressure: 50 MPa; Max self-priming speed: 1,350 min-1; Mass (approx.): 560 kg

Applications

• Press machines
• Metal production plants
• Power plants
• Waste treatment facilities
• Tunnel boring machines

Technical characteristics

• Type: Variable displacement axial piston pump (swash plate design)
• Intended use: Heavy duty industrial equipment (e.g., steel making plants, press machinery)
• Compatibility: Compatible with fire-resistant fluids
• Design: Improved efficiency and reduced noise thanks to Kawasaki technologies; heavy duty bearings for extended life
• Available models: K7VG180, K7VG265, K7VG500 with key specifications as listed above
