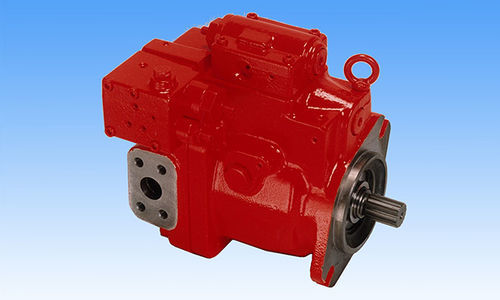

Hydraulic axial piston pump K3VL series

open circuithigh-efficiencylow-noise

Description The K3VL series are variable-displacement axial piston pumps of swash plate design for mobile and industrial hydraulic systems. A mechanism developed through extensive research reduces pressure pulsation. Unload and remote variable-pressure controls are available; the pumps support load-sensing, pressure-constant regulation and horsepower control functions.

Features

• High pump efficiency
• Low noise
• Wide range of control options

Specifications Model range: K3VL 28, K3VL 45, K3VL 80, K3VL 112, K3VL 140, K3VL 200, K3VL 200H
Displacement (cm3): 28, 45, 80, 112, 140, 200, 200
Pressure (MPa) Rated: 32
Pressure (MPa) Peak: 35
Max self-priming speed (min-1) by model: K3VL 28: 2,600; K3VL 45: 2,700; K3VL 80: 2,400; K3VL 112: 2,200; K3VL 140: 2,200; K3VL 200: 1,900; K3VL 200H: 2,200
Mass (approx., kg) by model: K3VL 28: 20; K3VL 45: 25; K3VL 80: 35; K3VL 112: 65; K3VL 140: 65; K3VL 200: 95; K3VL 200H: 130
Note: *1 with impeller

Applications

• Excavators
• Wheel loaders
• Crawler drills / pile drivers
• Cranes (Crawler / Rough Terrain)
• Truck mounted cranes
• Concrete pumps
• Crushers
• Asphalt pavers
• Forklift trucks
• Manlifts / Fire engines
• Trucks
• Tractors
• Combine harvesters
• Sprayers
• Rice-planting machines
• Forestry equipment
• Plastic machinery & die casting
• Press machines
• Waste treatment
• Oceanic machines
• Cargo vessels
• Oil tankers
• Offshore vessels

Technical specifications

• Commercial name: K3VL series
• Displacement options (cm3): 28, 45, 80, 112, 140, 200, 200 (200H)
• Rated pressure: 32 MPa
• Peak pressure: 35 MPa
• Max self-priming speed (min-1) by model: 28: 2,600; 45: 2,700; 80: 2,400; 112: 2,200; 140: 2,200; 200: 1,900; 200H: 2,200
• Mass (approx., kg) by model: 28: 20; 45: 25; 80: 35; 112: 65; 140: 65; 200: 95; 200H: 130
• Control options: unload, remote variable pressure, load-sensing, pressure-constant, horsepower control
• Design: variable-displacement axial piston pump, swash plate type
• Special note: *1 with impeller
