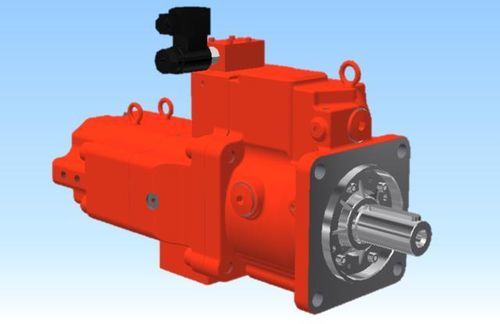

Hydraulic axial piston pump K3VR series

closed circuittwo-speedsuction

Overview
The K3VR series are closed-circuit axial piston pumps designed for variable-speed control systems. The built-in large-capacity suction valve simplifies closed-circuit configuration and contributes to reduced noise and improved energy efficiency in industrial machinery.

Features

• Designed specifically for variable-speed control
• Two-step displacement switching control
• Built-in large-capacity suction valve
• Low pulsation and low-noise operation
• Wide model lineup covering 22–200 cm3

Control Curve
Example control curves illustrating pump response and displacement switching are provided on the product page to aid selection and tuning.

Applications

• Press machines
• Plastic injection and die-casting machinery
• Metalworking plants
• Waste treatment equipment
• Marine and oceanic machines

Technical specifications

• Models: K3VR22, K3VR45, K3VR80, K3VR140, K3VR200
• Displacement (cm3/rev): K3VR22 = 22; K3VR45 = 45; K3VR80 = 80; K3VR140 = 140; K3VR200 = 200
• Pressure (MPa): Rated = 32 MPa; Peak = 35 MPa
• Max self-priming speed (min^-1): 1,500
• Mass (approx., kg): K3VR22 = 30; K3VR45 = 46; K3VR80 = 48; K3VR140 = 91; K3VR200 = 201
