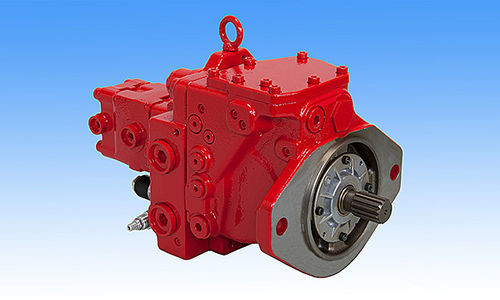

Hydraulic axial piston pump K7SP36

for vehiclesopen circuitfor excavators

Product Overview
The K7SP series are variable displacement axial piston pumps with a swash plate design intended for mini excavators and other industrial vehicles. The design integrates recent noise-reduction technologies to minimize radiated noise. An optional auxiliary pump can be attached to the unit.

Features

• Compact design
• Space-saving construction
• High reliability
• Low noise emission

Specifications
Model: K7SP36
Displacement (cm3): 36×2
Pressure (MPa) — Rated: 30, Peak: 32
Max self-priming speed (min^-1): 2,300

Control Curve
Examples of control curves are shown above and illustrate the pump's displacement response to control input.

Applications

• Mini and standard excavators

Technical specifications

• Product type: Variable displacement axial piston pump (swash plate design)
• Typical use: Mini excavators and other industrial vehicles
• Noise: Reduced noise through dedicated noise-reduction measures
• Optional equipment: Auxiliary pump attachment available
• Model: K7SP36
• Displacement: 36×2 cm3
• Pressure (MPa): Rated 30, Peak 32
• Max self-priming speed: 2,300 min^-1
• Key features: Compact design, space-saving construction, high reliability, low noise
