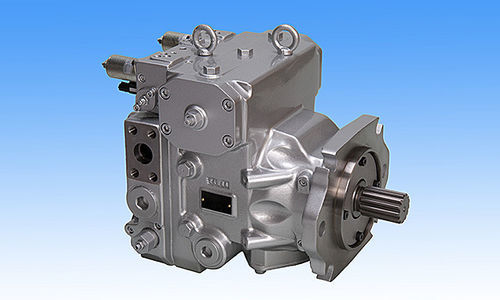

Hydraulic axial piston pump K8V series

hydraulically-operatedmanually-controlledelectrically-actuated

Product Overview
The K8V series are variable displacement axial piston pumps for closed loop systems. Using Kawasaki's latest technologies to improve efficiency and reduce noise, they achieve top-level pump efficiency and low noise that contribute to energy savings and a comfortable working environment. Delivery flow is precisely controlled in response to the control signal by mechanical feedback of the swash plate tilting position.

Features

• Top-level pump efficiency and low noise achieved with Kawasaki's latest technologies
• Precise flow control via swash plate position feedback
• High reliability and long service life for high-pressure operation
• Charge pump, high/low pressure relief valve and cut-off valve available as standard options
• Electric proportional control, hydraulic pilot displacement control and manual control available

Control Curve
The above are examples of control curves.

Applications

• Wheel loaders
• Dozer
• Backhoe loaders
• Track loaders
• Dump trucks
• Crushers
• Compactors
• Asphalt pavers
• Forklift trucks
• Telehandlers
• Combine harvesters
• Sprayers
• Forestry

Technical Specifications

• K8V71 — Displacement: 71 cm3; Pressure: Rated 42 MPa, Peak 50 MPa; Max. speed: 3,300 min-1; Weight (approx.): 60 kg
• K8V90 — Displacement: 90 cm3; Pressure: Rated 42 MPa, Peak 50 MPa; Max. speed: 3,050 min-1; Weight (approx.): 75 kg
• K8V125 — Displacement: 130 cm3; Pressure: Rated 42 MPa, Peak 50 MPa; Max. speed: 2,850 min-1; Weight (approx.): 95 kg
