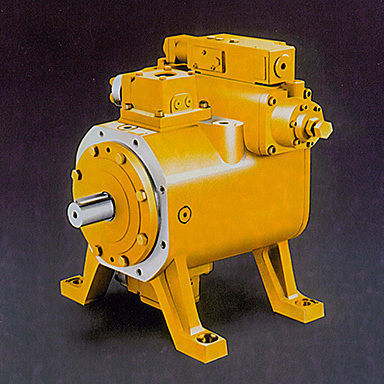

Hydraulic axial piston pump LX

for offshore applicationsfor industrial applicationsfor wastewater

Product overview
The LX/LZ series are axial piston pumps with a bent-axis design. LXV/LZV are variable-displacement versions equipped with heavy-duty bearings for extended service life. These pumps are suitable for prolonged operation under severe conditions, including continuous high-pressure duty and use of fire-resistant fluids.

Features

• Fixed and variable displacement options (LX/LZ and LXV/LZV)
• Compatible with fire-resistant hydraulic fluids

Specifications (table)
Model: LX/LZ (030, 060, 090, 120, 180, 260, 500)
Displacement (cm3): 030: 32.4; 060: 63.4; 090: 84.3; 120: 124; 180: 174; 260: 260; 500: 507
Pressure (MPa) Rated: 34.3 (all models)
Pressure (MPa) Peak: 39.2 (all models)
Max self-priming speed (min-1): 030: 3,600; 060: 2,880; 090: 2,620; 120: 2,300; 180: 2,060; 260: 1,800; 500: 1,440

Control curve
Example control curves are provided for reference.

Applications

• Press machines
• Metal plants
• Power plants
• Waste treatment facilities
• Marine equipment

Technical characteristics / specifications

• Type: Axial piston pump, bent-axis design; variable versions: LXV/LZV.
• Displacement per model (cm3): 030: 32.4; 060: 63.4; 090: 84.3; 120: 124; 180: 174; 260: 260; 500: 507.
• Rated pressure: 34.3 MPa; Peak pressure: 39.2 MPa.
• Max self-priming speed (min-1) per model: 030: 3,600; 060: 2,880; 090: 2,620; 120: 2,300; 180: 2,060; 260: 1,800; 500: 1,440.
• Design: Bent-axis geometry; LXV/LZV feature heavy-duty bearings for extended life.
• Suitable for continuous high-pressure operation and compatible with fire-resistant fluids.
