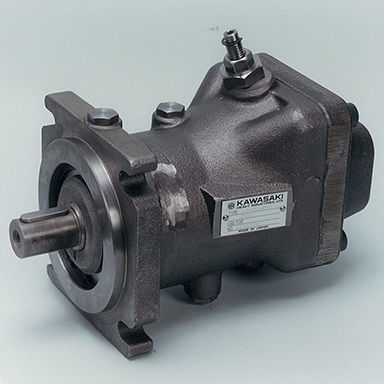

Hydraulic axial piston pump LVP 017

manually-controlledfor industrial applicationsfor hydraulic powerpacks

Product overview
Manual variable-displacement axial piston pump with bent-axis design for high-pressure jacks. Minimized dead volume reduces internal leakage and improves volumetric efficiency, suitable for heavy-duty hydraulic circuits.

Features

• Minimized dead volume for improved volumetric efficiency
• Manual displacement control
• Bent-axis configuration for compact high-pressure operation

Specifications
Model: LVP017
Displacement (cm³): 4–17.4
Rated Pressure (MPa): 34.3 / Peak 49
Max Self-Priming Speed (min-1): 1,800

Applications

• Tunnel boring machines (hydraulic jacks and actuators)

Technical specifications

• Model: LVP017
• Displacement: 4–17.4 cm³
• Rated Pressure: 34.3 MPa
• Peak Pressure: 49 MPa
• Max Self-Priming Speed: 1,800 min-1
• Design: Manual variable-displacement axial piston pump (bent-axis) for high-pressure jacks
• Feature: Minimized dead volume for high pump efficiency
