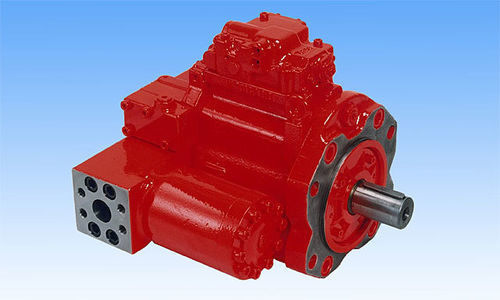

Hydraulic axial piston pump K3VG series

electro-hydraulicopen circuitlow-noise

Overview
The K3VG series are variable-displacement axial piston pumps with a swash plate design for industrial equipment. Designed for open-loop systems, they support multiple control strategies including flow, pressure and horsepower control. An optional ILIS electric-hydraulic servo regulator provides high-accuracy command-based flow control.

Features

• High pump efficiency
• Wide range of control options (flow, pressure, horsepower, combinations)
• Low noise operation
• Compatible with fire-resistant fluids
• Durable design for long service life
• Available dual-pump (DT) variants for higher displacement

Applications

• Plastic injection and die casting machinery
• Press machines
• Metalworking plants
• Wastewater and sludge treatment equipment
• Tunnel boring machines
• Cargo vessels and tankers (marine hydraulics)

Specifications
Model: K3VG 63 | K3VG 112 | K3VG 180 | K3VG 280 | K3VG 180DT | K3VG 280DT
Displacement (cm3): 63 | 112 | 180 | 280 | (180x2) | (280x2)
Pressure rated (MPa): 34.3 (all models)
Pressure peak (MPa): 39.2 (all models)
Max self-priming speed (min-1): 2,600 | 2,200 | 1,850 | 1,600 | 1,850 | 1,600
Mass (approx.) (kg): 48 | 68 | 86 | 160 | 160 | 300
Note: *1 Suction pressure should be -0.01 MPa or higher.

Technical specifications

• Displacement range: 63–560 cm3 (individual models: 63, 112, 180, 280; 180DT = 360; 280DT = 560)
• Rated pressure: 34.3 MPa
• Peak pressure: 39.2 MPa
• Max self-priming speed by model: K3VG 63: 2,600 min-1; K3VG 112: 2,200 min-1; K3VG 180: 1,850 min-1; K3VG 280: 1,600 min-1; K3VG 180DT: 1,850 min-1; K3VG 280DT: 1,600 min-1
• Approx. mass by model: 48–300 kg (see specification table for details)
• Supports multiple control methods including flow, pressure and horsepower control and their combinations
• Optional ILIS electric-hydraulic servo regulator for high-accuracy flow control
• Compatible with fire-resistant fluids
