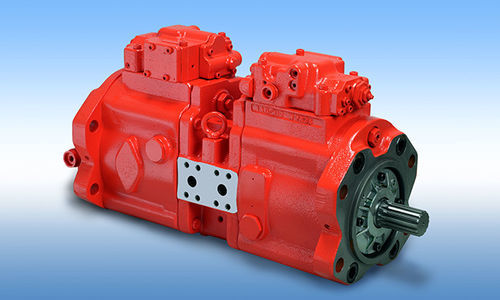

Reciprocating hydraulic pump K3V 63

axial pistonfor vehiclesopen circuit

Overview
The K3V / K5V series are variable displacement axial piston pumps with a swash plate design, engineered for mobile-hydraulic applications such as excavators, wheel loaders and cranes. Available in multiple rotary group layouts, including tandem (with PTO) and parallel configurations, the series is backed by over 25 years of mobile-application field experience.

Features

• High power density
• High suction capability
• Proven reliability in mobile applications
• Wide range of control and mounting options

Specifications (summary table)
Model: K3V 63 | K5V 80 | K3V 112 | K5V 140 | K5V 160 | K5V 200 | K5V 212 | K3V 280
Displacement (cm3): 65 | 80 | 117 | 140 | 160 | 200 | 214 | 280
Pressure rated (MPa): 34.3 (applies to all listed models)
Pressure peak (MPa): 39.2 (applies to all listed models)
Max self-priming speed (min-1): 2,650 | 2,460 | 2,360 | 2,160 | 2,000 [2,350]* | 1,900 [2,200]* | 2,000* | 2,000*
Structure — Single / Tandem / Parallel: availability depends on model (single and tandem available for most models; parallel available for selected models)

Control Curve
Representative control curves are provided for reference to evaluate control characteristics and response for different control options.

Applications

• Excavators
• Wheel loaders
• Crawler drills / pile drivers
• Cranes (crawler / rough terrain)
• Crushers
• Concrete pumps

Technical characteristics

• Variable displacement axial piston pump, swash plate design
• Available displacements: 65, 80, 117, 140, 160, 200, 214, 280 cm3
• Rated pressure: 34.3 MPa; Peak pressure: 39.2 MPa
• Max self-priming speed varies by model (up to 2,650 min-1; some values include optional impeller speeds indicated in brackets)
• Structure options: single, tandem (including tandem with PTO), and parallel configurations depending on model
• Designed for mobile machinery with high suction capability and multiple control options to match application requirements
