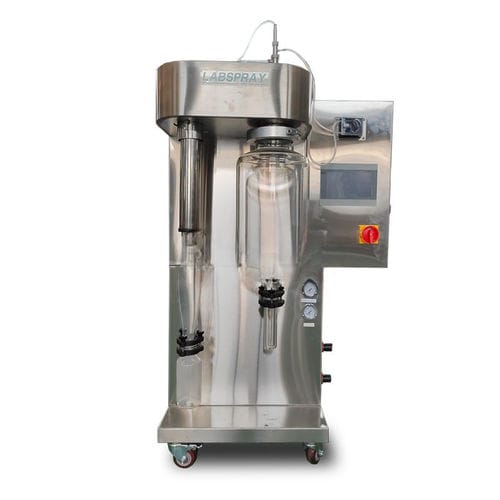

Spray dryer SD-8000G

for the food industryfor the pharmaceutical industryfor the chemical industry

Description
SD-8000G is a laboratory spray dryer designed for production of microparticle powders in universities, research institutes and R&D/production units in the food, pharmaceutical and chemical sectors. It is suitable for water-based solutions, emulsions and suspensions and for drying heat-sensitive materials thanks to rapid droplet evaporation.

Key points / Short summary

• Two-fluid atomizer with nozzle options: 0.5 / 0.75 / 1.0 / 1.5 / 2.0 mm
• Evaporation rate: 50–2200 mL/h
• Typical drying time: 0.8–1.0 s
• Particle size: 1–25 μm (≈95% in same range)
• Drying chamber: high borosilicate glass
• Suitable for water-based solutions; small amounts of organic solvent possible
• Optional bag filter model: SD-8000GF

Features

• Color touch screen with automatic and manual modes; ten-stage programmable temperature control with memory
• Full-automatic one-button start; automatic peristaltic pump start after parameter and temperature reach
• Manual mode for in-process adjustments with dynamic animation and control
• Immediate stop protection: stop command halts machine except fan to protect components
• Spray, drying and collection parts in high-grade stainless steel; easy disassembly and cleaning
• Organic solvent option includes oil-free imported compressor; low noise operation (<60 dB)
• Compact two-fluid atomization unit; no auxiliary atomization equipment required
• Real-time PID temperature control: accuracy ±0.5–1 °C across range
• Air inlet filter to protect samples
• Peristaltic pump feed control; minimum sample volume approx. 10–50 mL
• Nozzle needle cleaner for viscous feeds: automatic clearing with adjustable frequency
• Tower wall purging and automatic tower cleaning to increase recovery and reduce cleaning time

Process flow
Spray → Glass drying tower → Cyclone or bag filter collection → Sample collection / cold trap (configuration-dependent)

Specifications (excerpt)

• Model: SD-8000G (SD-8000GF = with bag filter)
• Chamber material: high borosilicate glass
• Control: automatic and manual dual mode; color touch screen
• Inlet temp. range: 30–400 °C; outlet: 30–200 °C
• Evaporation (water): 50–2200 mL/h
• Feed control: peristaltic pump up to 2200 mL/h; minimum feed ~50 mL
• Drying time: ~0.8–1.0 s
• Nozzle diameters: 0.5 / 0.75 / 1.0 / 1.5 / 2.0 mm
• Power: 2–3 kW, single-phase 220 V
• Machine dimensions (H×L×W): 1380 × 770 × 590 mm; package weight ~90 kg

Spare parts / delivered items (selected)

• Spray dryer SD-8000 — 1 set
• Built-in air compressor — 1 set
• LCD touch screen (MCGS) — 1 pc
• Fan RB022 — 1 set
• Stainless steel drying room / cyclone — 1 set each
• Stainless steel sample bottle 500 mL — 1 pc
• Sample collection cold trap — 1 pc
• Medical-grade feed tubing — 1.5 m
• Imported atomizer (selected diameter) — 1 pc
• PTFE gaskets, clamps, accessories — as specified

Notes / Options

• Upgradeable to two-stage separation and collection
• Nozzle cleaner (needle) included; adjustable clearing frequency
• Optional nitrogen circulation for organic solvent drying
• Intelligent control system (replaces traditional PLC) for improved stability
• Misoperation protection (e.g. fan/heater order protection)

Technical characteristics

• Atomizer: two-fluid; nozzle options 0.5–2.0 mm
• Evaporation rate: 50–2200 mL/h
• Temperature control: real-time PID; accuracy ±0.5 °C
• Particle size: 1–25 μm (≈95% uniformity)
• Construction: borosilicate glass chamber; stainless-steel spray/drying/collection parts
• Noise (with compressor): <60 dB
