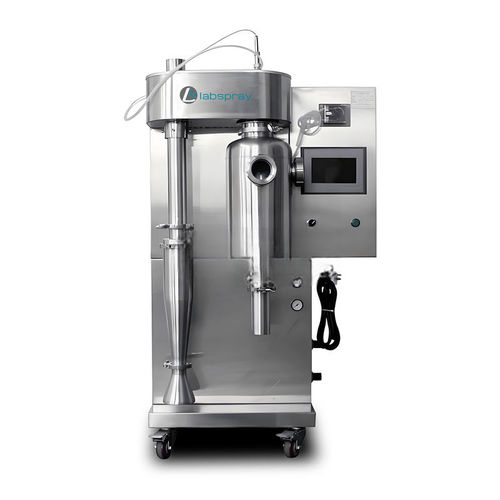

Spray dryer SD-8000S

for the food industryfor the pharmaceutical industrylaboratory

Product Overview
SD-8000S laboratory small spray dryer is designed for production of microparticle powder in universities, research institutes and food and pharmaceutical chemical enterprises. It is suitable for emulsions, suspensions and heat-sensitive substances (biological products, enzyme preparations, etc.) because atomized droplets are heated only instantaneously during drying, preserving active materials.

Short Product Highlights

• Two-fluid atomizer options: 0.5 mm / 0.75 mm / 1.0 mm / 1.5 mm / 2.0 mm
• Process capacity: 50 mL/h to 2200 mL/h
• Drying time: 0.8 – 1.0 s
• Particle size: 1 to 25 μm
• Suitable liquids: water-based solutions and small amounts of organic solvent
• Drying chamber material: SS304 stainless steel
• Optional bag filter device (model SD-8000SF)

Key Features

• Large color touch screen (MCGS) with automatic and manual control; ten-stage program temperature control with memory function
• Full-automatic mode: one-button start; system reaches preset temperatures and starts the peristaltic pump automatically; running animation and process display on the touch screen
• Manual mode for real-time adjustment of process parameters with dynamic display
• Shutdown protection: pressing stop halts functions immediately except fan to protect equipment
• Spray, drying and collection system made of high-quality stainless steel for non-polluting, stable processing; components are easy to disassemble and clean
• Built-in imported oil-free air compressor (optional for organic-solvent drying) ensures uniform powder diameter, good flowability and low noise <60 dB
• Two-fluid atomization with precision stainless-steel construction; compact design, long service life; no auxiliary equipment required
• Real-time PID temperature control; heating precision ±0.5 °C with online inlet and outlet temperature display
• Air inlet filter to keep samples clean
• Adjustable feed via peristaltic pump; minimum sample volume down to 10–50 mL depending on model
• After drying, powder particle size distribution is uniform; >95% of powder within the same particle size range
• Nozzle cleaner (passing needle) for viscous materials with adjustable needle frequency
• Innovative tower wall purging device to improve material recovery rate
• Automatic drying tower cleaning to enhance sample recovery and reduce manual cleaning time

Process & Accessories
The SD-8000S series supports optional two-stage separation and collection systems, tower-wall purging, and upgrade to nitrogen circulation for organic solvent drying. Typical included/available parts: built-in air compressor, fan, stainless-steel drying chamber, stainless-steel cyclone separator, 500 mL collection bottle, cold trap, medical-grade feed tubing, imported spray gun with selectable nozzles, clamps and PTFE gaskets.

Technical Specifications

• Model: SD-8000S (standard); SD-8000SF (with bag filter)
• Chamber material: SS304 stainless steel
• Bag filter: SD-8000S = N/A; SD-8000SF = included
• Control: Fully automatic and manual dual control; color touch screen dynamic display (MCGS)
• Inlet air temperature control: 30 °C – 400 °C
• Outlet temperature control: 30 °C – 200 °C
• Evaporation (water) capacity: 50 mL/h – 2200 mL/h
• Maximum feed amount: peristaltic pump adjustable up to 2200 mL/h
• Minimum feed amount: 50 mL
• Temperature control accuracy: ±0.5 °C (real-time PID)
• Drying time: 0.8 – 1.0 s
• Shutdown protection: pressing stop halts operation immediately except fan
• Touch-screen display parameters: inlet air temp, outlet temp, peristaltic pump speed, air volume, needle frequency
• Nozzle diameters (optional): 0.5 / 0.75 / 1.0 / 1.5 / 2.0 mm; customizable
• Time setting function: user-set working time; automatic stop when time ends
• Automatic fan stop: fan runs until inlet temp < 30 °C, then auto-stop
• Powder uniformity: >95% of dry powder within same particle size range
• Power: 2 – 3.0 kW, single phase 220 V
• Spray head cooling device: optional
• Equipment size (W×L×H): 595 × 770 × 1380 mm
• Outer packaging size: 735 × 910 × 1500 mm
• Package weight: 90 kg
• Spare parts / supplied items: 1 set SD-8000 unit, 1 built-in air compressor, MCGS LCD, fan (RB022), stainless-steel drying chamber, stainless-steel cyclone separator, 500 mL stainless-steel collection bottle, stainless-steel cold trap, 1.5 m medical-grade feed tube, imported spray gun (nozzle options), clamp set, PTFE gasket
