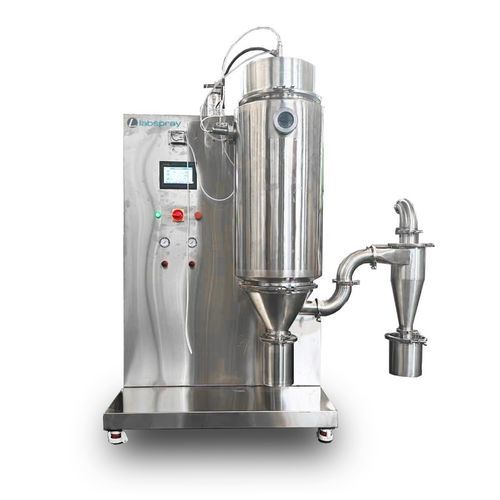

Spray dryer SD-1900

hot airlaboratoryfor pilot plants

Product description
SD-1900 is a pilot-scale spray dryer engineered for laboratory and small-scale production. It combines a compact footprint (<1 m²), low noise and low energy consumption with intuitive operation via one-button start and a color LCD touch screen. The unit operates in Automatic mode for repeatable runs or in Eye‑monitored mode for manual observation, producing micron-range particles with consistent drying performance. Depending on nozzle selection, particle diameter can range from 1 to 100 µm; typical process range 5–100 µm.

Key features

• Concentric spray head adjustable vertically to optimize atomization position and spray pattern.
• PID temperature control with ±1 °C precision for stable thermal profiles.
• Automatic temperature protection: blower continues until internal temperature reaches a safe level, preventing premature shutdown.
• Integrated nozzle cleaner (deblocking device) with adjustable cleaning frequency to reduce clogging and downtime.
• Compact footprint and user-friendly interface (one-button start, color LCD touch screen).

Specifications

• Model: SD-1900
• Nominal capacity: 3.5–5.0 L/h (3500–5000 ml/h)
• Sample feed range: 50–5000 ml/h
• Particle diameter: 1–100 µm (typical 5–100 µm)
• Air inlet temperature: 105–350 °C
• Air outlet temperature: 65–160 °C
• Temperature control: PID, precision ±1 °C
• Standard nozzle: 1.5 mm (optional: 0.8 / 1.0 / 2.0 mm)
• Construction material: 304 stainless steel (drying chamber, cyclone, collection lines)
• Heating power: 9 kW (AC380V/50–60Hz)
• Dimensions: 1100 × 955 × 1950 mm
• Operational modes: Automatic and Eye‑monitored
• Optional systems: inert loop, nitrogen circulating system, solution recovery (SD-1900A)
