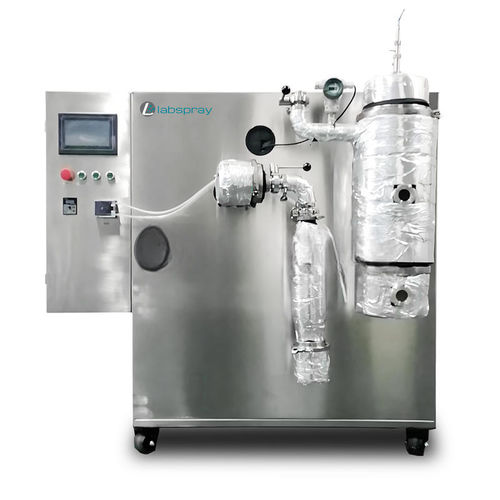

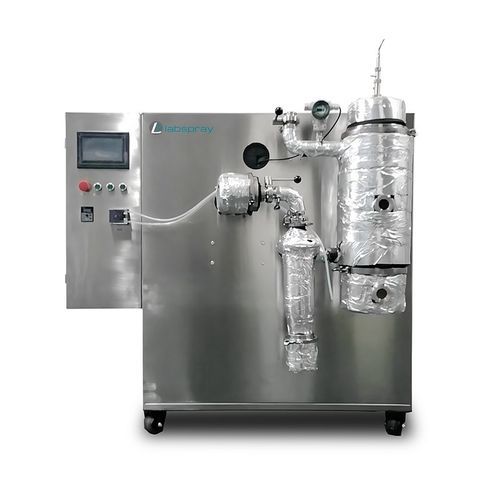

Laboratory freeze dryer SD-3000F-II

pilotfor the food industryfor the pharmaceutical industry

Product overview
SD-3000F-II laboratory pilot spray freeze dryer is designed for low-temperature dehydration of heat-sensitive, viscous, active and high-sugar materials such as herbal extracts, dairy products, biological agents, enzymes, fruit juice and polymer materials. It combines spray-drying and freeze-drying processes to provide rapid drying while preserving biological and chemical properties of materials.

Features

• Combination of spray dryer and vacuum freeze dryer for faster drying speed than traditional vacuum freeze dryers; dried powders retain original properties and reconstitute to near-original state when re-dissolved.
• Air-cooled condenser with closed compressor: rapid cooling performance, low freezing temperature and strong moisture absorption capacity.
• Digital display of temperature and vacuum; 7-inch color LCD touch screen displays drying chamber temperature, pump speed, fan frequency, de-blocker frequency and chamber pressure.
• During dehydration, the equipment heats and sublimates natural air to ensure sample safety.
• Built-in vacuum pump for integrated operation.
• Vacuum connections use international standard clamps for convenience and reliability.
• Stable performance, easy operation and low noise.
• Compared with traditional freeze dryers: rapid freeze-drying of wall-sticking and high-solids liquids (juice, herbal extracts, etc.); powder particle size adjustable within a certain range.

Technical specifications

• Model: SD-3000F-II
• Power: 12 KW
• Voltage: 380 V
• Capacity: 1000 / batch
• Spray freezing temperature: < -30 °C
• Cold trap temperature: ≤ -60 °C
• Vacuum pump power: 2 KW
• Max. vacuum pressure: < 20 Pa
• Spray pressure: 2–5 Bar (adjustable)
• Compressed air: 4.2 m³/h
• Nozzle type: Two-fluid nozzle
• Nozzle jet (standard): 0.7 mm (other sizes available: 0.5 / 0.75 / 1.0 / 1.5 / 2.0 mm)
• Body material: SUS-304 stainless steel
• Operation mode: Automatic / Manual
• Vacuum pump plug: Yes
• Vacuum connection: Standard clamp
• Seal of cyclone/cylinder: Silicone
• Vacuum degree display: Digital
• Dimensions: 1600 × 1080 × 1750 mm
• Weight: 300 kg
• Display: 7-inch LCD
• Sample safety: Low temperature & vacuum
• Particle size: 1–100 μm
