Fluidized bed granulator SD-1000

wetdryfor plastics

Product

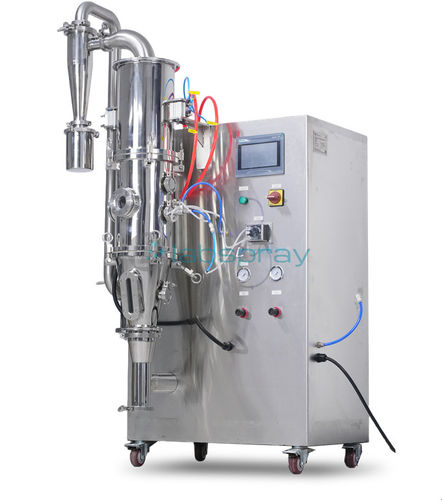

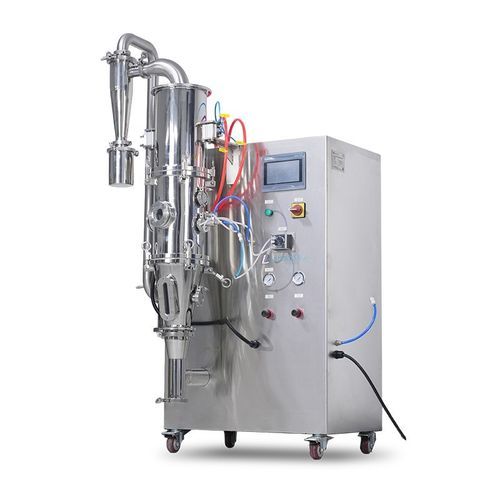

SD-1000 laboratory spray granulator and coating spray dryer with integrated mixing and fluidized-bed capability.

What it can do

• Spray drying: up to 1500 ml/h; inlet temperature 105–200 °C
• Spray granulation: batch size 50–1000 g
• Coating: batch size 50–1000 g
• Mixing: batch size 50–1000 g
• Fluidized-bed drying: batch size 50–1000 g
• Designed for R&D trials and laboratory process development

SD-1000 lab spray granulator features

• Compact footprint: fits within ~1 m²
• Low power consumption and user-friendly operation
• Suitable for heat‑sensitive materials and easily dissolving particulates
• PLC control with 7" LCD touch interface showing heat, spray, pump, air pressure and de-blocker frequency
• Emergency stop and shutdown protection to prevent heating when fan is stopped
• Two-fluid atomization components in SUS316; main body in SUS304 stainless steel and high borosilicate glass
• PID temperature control for real-time regulation

Application scope
Pharmaceuticals, food & feed, ceramics, plastics & rubber, polymers & resins, bioproducts, chemicals & fertilizers, perfumes, dyes & pigments, botanical extracts, aroma compounds, grains, etc.

Application area
Spray dehydration and micronization, microencapsulation, formulation restoration and extraction, suspension drying, particle size control and morphology modification.

Parameters
Model: SD-1000; Functions: spray dryer, spray granulator, coating, mixing, fluidized-bed dryer; Power: 5 kW (220 V, 50/60 Hz); Spray granulator capacity: up to 1000 g/batch; Spray dryer capacity: up to 1500 ml/h; Min. sample: 50 g; Granulator temp.: 40–150 °C; Spray dryer inlet temp.: 105–200 °C; Compressed air: 2–4 bar; Temp. precision: ±1 °C; Nozzle: two-fluid (0.7 mm standard; 0.5/0.75/1.0/1.5/2.0 mm optional); Dried particle size: 500 µm–2 mm; Airflow: 0–150 m3/h; Peristaltic pump max.: 1500 ml/h; Main chamber volume: 10 L; Heater power: 3.5 kW; Main chamber material: SUS304 & high borosilicate glass; Body: SUS304; Cyclone/cylinder seal: silicone; Noise: <60 dB; Dimensions (W×D×H): 905×805×1305 mm; Weight: 115 kg; Operation modes: automatic/manual; Display: 7" LCD.

Technical specifications

• Function: spray dryer, spray granulator, coating, mixing, fluidized-bed drying
• Power: 5 kW (220 V, 50/60 Hz)
• Spray granulator capacity: up to 1000 g per batch
• Spray dryer capacity: up to 1500 ml/h
• Minimum sample volume: 50 g
• Granulator temperature range: 40–150 °C
• Spray dryer inlet temperature range: 105–200 °C
• Compressed air: 2–4 bar
• Temperature precision: ±1 °C
• Nozzle type: two-fluid (standard 0.7 mm; optional 0.5 / 0.75 / 1.0 / 1.5 / 2.0 mm)
• Dried powder particle size: 500 µm–2 mm
• Airflow: 0–150 m3/h
• Peristaltic pump max. feed: 1500 ml/h
• Main chamber volume: 10 L
• Heater power: 3.5 kW
• Main chamber material: SUS304 stainless steel & high borosilicate glass
• Body material: SUS304 stainless steel
• Seal material (cyclone/cylinder): silicone
• Operating noise: <60 dB
• Dimensions (W×D×H): 905 × 805 × 1305 mm
• Weight: 115 kg
• Operation modes: automatic / manual
• Display: 7" LCD (controls heat, spray, pump, air pressure, de-blocker frequency)
