Fluidized bed granulator SD-300L
wetfor laboratorycompact

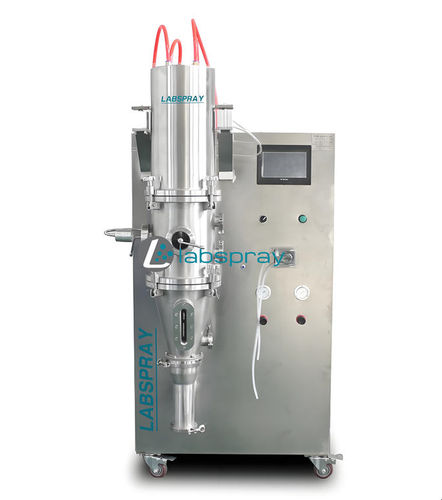

Fluidized bed granulator - SD-300L - Labfreez Instruments Group Co., Ltd - wet / for laboratory / compact
Fluidized bed granulator - SD-300L - Labfreez Instruments Group Co., Ltd - wet / for laboratory / compact

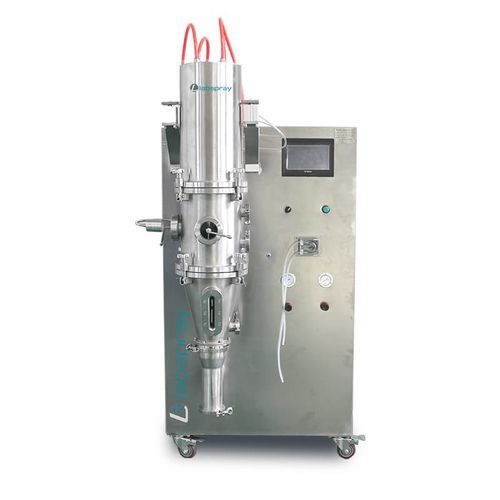

Fluidized bed granulator - SD-300L - Labfreez Instruments Group Co., Ltd - wet / for laboratory / compact - image - 2
Add to favorites
Compare this product
Go to the Labfreez Instruments Group Co., Ltd website for more information

Characteristics

Type
wet, fluidized bed
Sector
for laboratory
Other characteristics
compact, multi-function, with dryer
Final grain size

Max.: 3,000 µm

Min.: 100 µm

Description

Product overview
  • Bench-scale micro spray granulation and coating system for research and small-batch production: spray granulation, coating, mixing and fluidized-bed drying.
  • Integrated top- and bottom-spray configurations for flexible process development and functional coating.
  • Process capacity: up to 300 g per batch (minimum 50 g).
  • Peristaltic pump flow: up to 1000 ml/h.
  • Two-fluid spray atomizer available in 0.7 mm (standard) and 1.0 mm (optional).


Working principle
  • Spray agglomeration on a fluidized bed converts fine, poorly flowing powders into larger, free-flowing agglomerates by spraying a binder or suspension onto entrained particles.
  • The process generates liquid bridges between particles; continued atomization increases agglomerate size until the target PSD is reached. Evaporation of residual moisture and binder solidification produce porous particles with internal capillaries.
  • Typical agglomerate sizes range from 100 μm to 3 mm; starting materials can be ultra-fine powders.
  • Fluidized-bed drying provides uniform, controlled drying with high heat/mass transfer efficiency—suitable for post-drying of spray-formed or extruded materials and for achieving low residual moisture.
  • Inlet air temperature must be selected to allow continuous evaporation without forming a surface skin; excessively high inlet temperatures can lead to structural instability or uneven film formation.


Structure
  • Top-spray configuration: cone-shaped pot body with expansion chamber to promote fountain-like fluidization and multiple spray ports for drying, granulation and taste-masking coating.
  • Bottom-spray configuration: conical pot with built-in deflector and dual air-duct design; material circulates via a guide tube while a central bottom-up atomizer performs functional coating of pellets and granules.


Technical characteristics
  • PLC automatic control with 7-inch color touch screen; real-time adjustment and display of inlet/outlet air temperature, material temperature, fan speed and spray pressure. USB interface for data export.
  • Core components (touch screen, fan, heater, control system) are imported for stable, reliable operation.
  • Interchangeable pots of different volumes to accommodate varied batch sizes.
  • Material-temperature and inlet-air-temperature feedback linkage for optimized process control.
  • Back-blowing design to improve granulation yield.
  • PID real-time regulation for stable temperature control across the process zone.


Specifications
  • Model: SD-300L Mini Spray Granulation Coating All-in-one Machine
  • Functions: spray granulation, coating, mixing, fluidized-bed drying
  • Rated granulation capacity: MAX. 300 g/batch (min. 50 g)
  • Granulation temperature range: 40–150 °C
  • Compressed air: 7 Bar
  • Spray head: two-fluid nozzle (0.7 mm standard; 1.0 mm optional)
  • Fan airflow: 0–150 m³/h
  • Peristaltic pump: max. 1000 ml/h
  • Drying chamber volume: 5 L
  • Heater power: 3 kW
  • Drying chamber & frame material: SUS304 stainless steel
  • Overall dimensions: 700 × 600 × 1150 mm
  • Display: 7-inch LCD with USB data export


Technical specifications
  • Model: SD-300L
  • Process capacity: up to 300 g/batch (min. 50 g)
  • Drying chamber volume: 5 L
  • Granulation temperature range: 40–150 °C
  • Heater power: 3 kW
  • Fan airflow: 0–150 m³/h
  • Compressed air requirement: 7 Bar
  • Spray atomizer: two-fluid nozzle (0.7 mm standard; 1.0 mm optional)
  • Peristaltic pump speed: max. 1000 ml/h
  • Materials: SUS304 stainless steel (chamber and frame)
  • Control: PLC + 7-inch color touch screen with USB data export
  • Dimensions: 700 × 600 × 1150 mm
