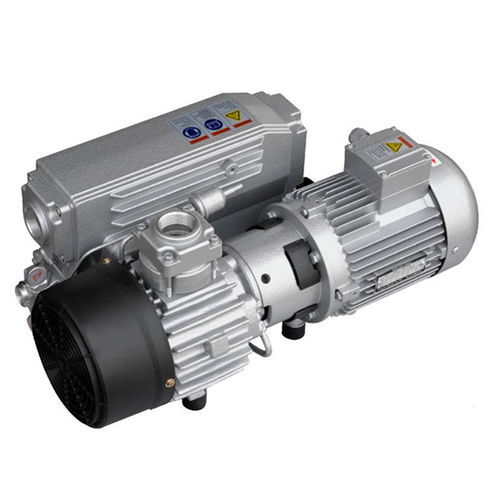

Rotary vane vacuum pump MV-0040
lubricatedsingle-stagemotor

Rotary vane vacuum pump - MV-0040 - MARPA VACUUM S.L - lubricated / single-stage / motor
Rotary vane vacuum pump - MV-0040 - MARPA VACUUM S.L - lubricated / single-stage / motor
Rotary vane vacuum pump - MV-0040 - MARPA VACUUM S.L - lubricated / single-stage / motor - image - 2
Add to favorites
Compare this product

Characteristics

Technology
rotary vane
Lubrication
lubricated
Number of stages
single-stage
Applications
suction, motor
Ultimate vacuum

0.1 mbar
(0 psi)

Flow rate

40 m³/h, 48 m³/h
(1,412.59 ft³/h, 1,695.1 ft³/h)

Power

1.1 kW, 1.5 kW
(1.5 hp, 2.04 hp)

Operating temperature

Max.: 78 °C
(172 °F)

Min.: 12 °C
(54 °F)

Length

630 mm
(25 in)

Width

301 mm
(11.85 in)

Height

270 mm
(10.63 in)

Noise level

64 dB, 67 dB

Weight

52 kg
(114.64 lb)

Description

is a robust vacuum pump used in industrial applications. Its robust design makes it the right choice for 24-hour operation in industrial applications. Equipped with a gas-ballast valve as standard, this pump is able to extract high volumes of steam. The electric motor of the MV series boasts class IE3 efficiency. What is more, this pump is equipped with a non-return valve on the suction flange, preventing the pumped medium from flowing back into the vacuum process when the vacuum pump is switched off.

Catalogs

No catalogs are available for this product.

See all of MARPA VACUUM S.L‘s catalogs

Other MARPA VACUUM S.L products

Single-stage lubricated rotary vane vacuum pumps
