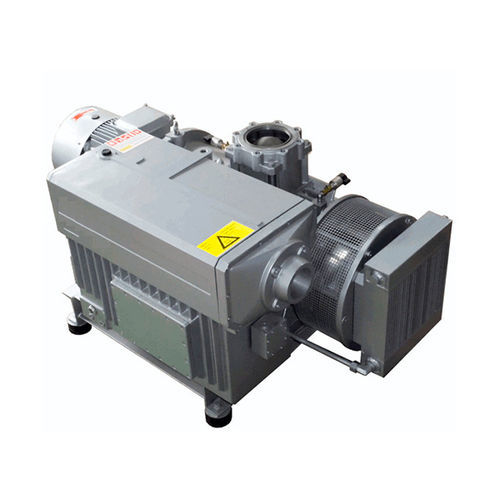

Pneumatic conveying vacuum pump MV-1600

for industrial applicationsfor laboratorychemical process

The MV-1600 is a robust vacuum pump used in industrial applications. Its robust design makes it the right choice for 24-hour operation in industrial applications. It has a non-return valve on the suction flange to prevent oil and gases from flowing back into the process after the pump has stopped. Equipped with a gas-ballast valve as standard, this pump is able to extract high volumes of steam. The electric motor of the MV series boasts class IE3 efficiency. - Dimensions Table: - Dimensions: A: 1905, B: 1158, C: 934, D: 684, E: 482.5, F: 640, G: 178, H: 76 - Technical Data Table: - Flow rate: 1.6 m³/h (50 Hz), 1.92 m³/h (60 Hz) - Ultimate pressure: 0.5 mbar - Motor power: 30 kW (50 Hz), 37 kW (60 Hz) - Nominal motor speed: 960 rpm (50 Hz), 1.16 rpm (60 Hz) - Noise level: 83 dB(A) (50 Hz), 85 dB(A) (60 Hz) - Oil tank capacity: 45 L - Weight: 980 kg (50 Hz), 1030 kg (60 Hz) - Permissible ambient temperature: 12-40 ºC - Gas inlet: 4” G (BSP) - Applications: - Vacuum packaging - Plastic industry - Wood industry - Pick & Place applications - Food technology - Pneumatic conveying - Key Features: - Robust vacuum pump for industrial applications - Designed for 24-hour operation - Non-return valve on suction flange - Gas-ballast valve for high steam extraction - IE3 efficiency electric motor
