Rotary vane vacuum pump MV-0300
lubricatedsingle-stagemotor

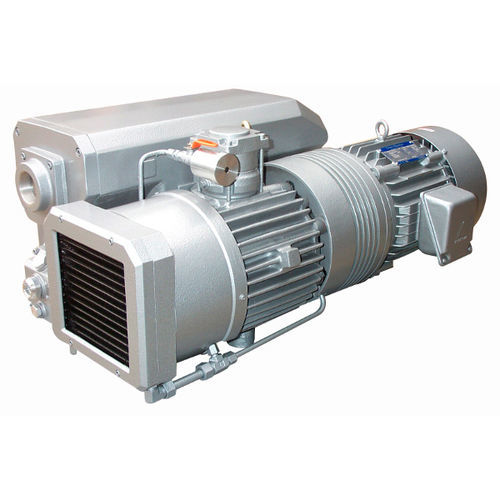

Rotary vane vacuum pump - MV-0300 - MARPA VACUUM S.L - lubricated / single-stage / motor
Rotary vane vacuum pump - MV-0300 - MARPA VACUUM S.L - lubricated / single-stage / motor
Rotary vane vacuum pump - MV-0300 - MARPA VACUUM S.L - lubricated / single-stage / motor - image - 2
Add to favorites
Compare this product

Characteristics

Technology
rotary vane
Lubrication
lubricated
Number of stages
single-stage
Applications
suction, motor
Ultimate vacuum

0.1 mbar
(0 psi)

Flow rate

300 m³/h, 360 m³/h
(10,594.4 ft³/h, 12,713.28 ft³/h)

Power

7.5 kW, 8.6 kW
(10.2 hp, 11.69 hp)

Operating temperature

Max.: 86 °C
(187 °F)

Min.: 12 °C
(54 °F)

Length

1,032 mm
(41 in)

Width

550 mm
(21.65 in)

Height

316 mm
(12.44 in)

Noise level

75 dB, 78 dB

Description

is a robust vacuum pump used in industrial applications. Its robust design makes it the right choice for 24-hour operation in industrial applications. It has a non-return valve on the suction flange to prevent oil and gases from flowing back into the process after the pump has stopped. Equipped with a gas-ballast valve as standard, this pump is able to extract high volumes of steam. The electric motor of the MV series boasts class IE3 efficiency.
