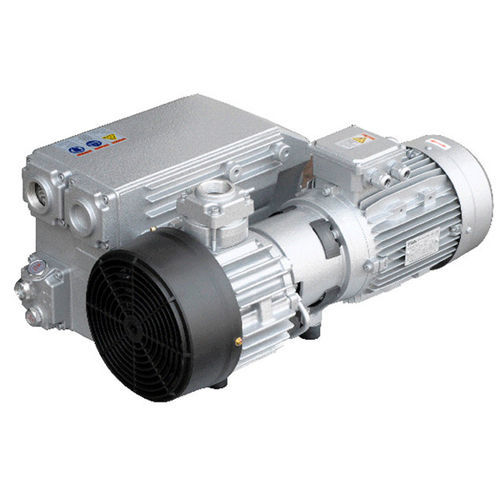

Lubricated vacuum pump MV-0100

single-stagefor packagingfor gas

The MV-0100 is a robust vacuum pump used in industrial applications. Its robust design makes it the right choice for 24-hour operation in industrial applications. It has a non-return valve on the suction flange to prevent oil and gases from flowing back into the process after the pump has stopped. If equipped with a gas-ballast valve, this pump is able to extract high volumes of steam. The electric motor of the MV series boasts class IE3 efficiency. Applications: - Vacuum packaging - Plastic industry - Wood industry - Pick & Place applications - Food technology - Pneumatic conveying Product dimensions / photographs: Click to enlarge dimensional diagrams or images of the product. Dimensions: - MV-0100: W 704, D 412, H 302, A 49, B 224, C 172, E 292, F 172, G 285, I 235, J G1-1/4", K 15, L 10, M G1-1/4", N 297, O 396, P 5, Q 3xM8, R 93 Technical data: - Flow rate: 100 m³/h (50 Hz), 120 m³/h (60 Hz) - Ultimate pressure: 0.1 mbar - Water vapour tolerance: 40 mbar - Water vapour capacity: 2.6 Lt/h (50 Hz), 2.8 Lt/h (60 Hz) - Motor power: 2.2 kW (50 Hz), 3 kW (60 Hz) - Nominal motor speed: 1.45 rpm (50 Hz), 1.74 rpm (60 Hz) - Noise level: 65 dB(A) (50 Hz), 68 dB(A) (60 Hz) - Operating temperature: 83ºC (50 Hz), 85ºC (60 Hz) - Oil tank capacity: 2 Lt - Weight: 75 kg - Permissible ambient temperature: 12-40ºC - Gas inlet/outlet: 1 - 1/4" G (BSP) Characteristics / Technical Specifications: - Robust design for 24-hour industrial operation - Non-return valve on suction flange - Optional gas-ballast valve for high steam extraction - IE3 efficiency class electric motor
