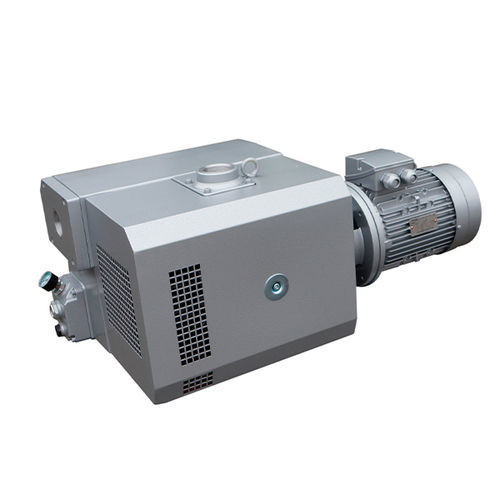

Lubricated vacuum pump MV-0160

for packagingfor gasfor industrial applications

The MV-0160 is a robust vacuum pump used in industrial applications. Its robust design makes it the right choice for 24-hour operation in industrial environments. It features a non-return valve on the suction flange to prevent oil and gases from flowing back into the process after the pump has stopped. Equipped with a gas-ballast valve as standard, this pump is able to extract high volumes of steam. The electric motor of the MV series boasts class IE3 efficiency. - Vacuum packaging - Plastic industry - Wood industry - Pick & Place applications - Food technology - Pneumatic conveying Technical data: - Flow rate: 160 m³/h (50 Hz), 192 m³/h (60 Hz) - Ultimate pressure: 0.1 mbar - Water vapour tolerance: 40 mbar - Water vapour capacity: 3 Lt/h (50 Hz), 3.6 Lt/h (60 Hz) - Motor power: 3.7 kW - Nominal motor speed: 1450 rpm (50 Hz), 1740 rpm (60 Hz) - Noise level: 72 dB(A) (50 Hz), 75 dB(A) (60 Hz) - Operating temperature: 80ºC (50 Hz), 83ºC (60 Hz) - Oil tank capacity: 7 Lt - Weight: 124 kg - Permissible ambient temperature: 12-40ºC - Gas inlet: 2" G (BSP) - Gas outlet: 1-1/2" G (BSP) - Robust design for 24-hour industrial operation - Non-return valve on suction flange - Gas-ballast valve for high steam extraction - IE3 efficiency electric motor
