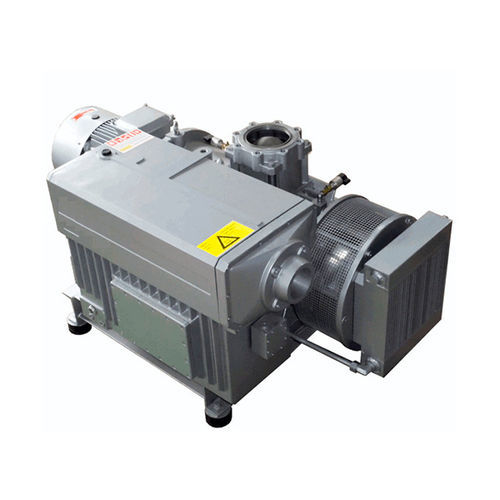

Lubricated vacuum pump MV-1000

for gasfor industrial applicationssuction

The MV-1000 is a robust vacuum pump used in industrial applications. Its robust design makes it the right choice for 24-hour operation in industrial environments. It features a non-return valve on the suction flange to prevent oil and gases from flowing back into the process after the pump has stopped. Equipped with a gas-ballast valve as standard, this pump is able to extract high volumes of steam. The electric motor of the MV series boasts class IE3 efficiency. Applications: - Vacuum packaging - Plastic industry - Wood industry - Pick & Place applications - Food technology - Pneumatic conveying Product dimensions: - Dimensions: A: 1905, B: 1158, C: 934, D: 684, E: 482.5, F: 640, G: 178, H: 76 Technical data: - Flow rate: 1 m³/h (50 Hz), 1.2 m³/h (60 Hz) - Ultimate pressure: 0.5 mbar - Motor power: 25 kW (50 Hz), 30 kW (60 Hz) - Nominal motor speed: 960 rpm (50 Hz), 1.16 rpm (60 Hz) - Noise level: 82 dB(A) (50 Hz), 84 dB(A) (60 Hz) - Oil tank capacity: 42 liters - Weight: 980 kg (50 Hz), 1030 kg (60 Hz) - Permissible ambient temperature: 12-40 ºC - Gas inlet: 4” G (BSP) Key features / Technical specifications: - Robust vacuum pump for industrial applications - Designed for 24-hour operation - Non-return valve on suction flange - Gas-ballast valve for high steam extraction - IE3 efficiency electric motor
