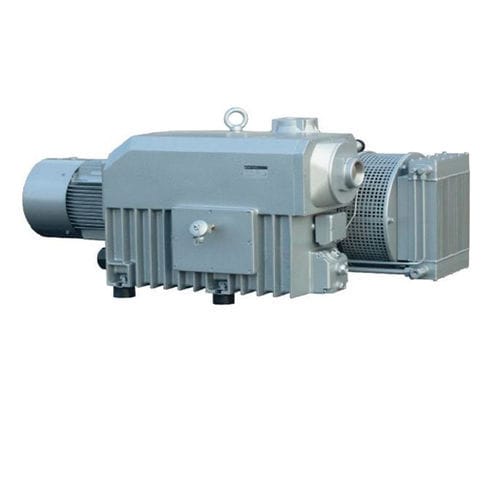

Lubricated vacuum pump MV-0660

for packagingfor gasfor industrial applications

The MV-0660 is a robust vacuum pump used in industrial applications. Its robust design makes it the right choice for 24-hour operation in industrial applications. It has a non-return valve on the suction flange to prevent oil and gases from flowing back into the process after the pump has stopped. Equipped with a gas-ballast valve as standard, this pump is able to extract high volumes of steam. The electric motor of the MV series boasts class IE3 efficiency. Applications: - Vacuum packaging - Plastic industry - Wood industry - Pick & Place applications - Food technology - Pneumatic conveying Product dimensions: - Dimensions: W 1484, D 874, H 671, A 242, B 417, C 494, E 569, F 494, G 631, I 491, J G3", K 65, L 118, M G3", N 614, O 889, Q 4x12, R 279, S 387 Technical data: - Flow rate: 660 m³/h (50 Hz), 780 m³/h (60 Hz) - Ultimate pressure: 0.1 mbar - Water vapour tolerance: 40 mbar - Water vapour capacity: 27 Lt/h (50 Hz), 30 Lt/h (60 Hz) - Motor power: 15 kW (50 Hz), 18.5 kW (60 Hz) - Nominal motor speed: 980 rpm (50 Hz), 1.16 rpm (60 Hz) - Noise level: 77 dB(A) (50 Hz), 79 dB(A) (60 Hz) - Operating temperature: 80 ºC (50 Hz), 83 ºC (60 Hz) - Oil tank capacity: 19 Lt - Weight: 582 kg (50 Hz), 703 kg (60 Hz) - Permissible ambient temperature: 12-40 ºC - Gas inlet: 3” G (BSP) - Gas outlet: 3” G (BSP) - Robust vacuum pump for industrial applications - 24-hour operation capability - Non-return valve on suction flange - Gas-ballast valve for high steam extraction - IE3 efficiency electric motor
