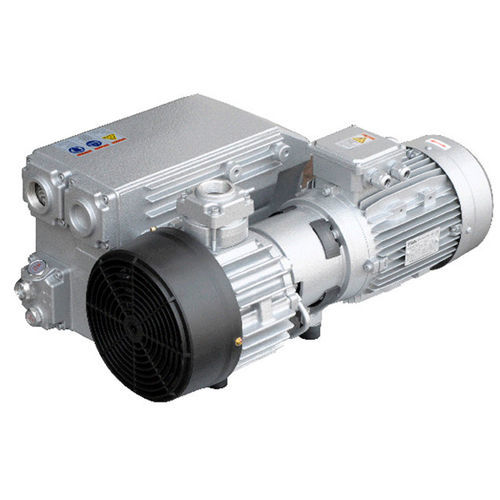

Rotary vane vacuum pump MV-0063
lubricatedsingle-stagesuction

Rotary vane vacuum pump - MV-0063 - MARPA VACUUM S.L - lubricated / single-stage / suction
Rotary vane vacuum pump - MV-0063 - MARPA VACUUM S.L - lubricated / single-stage / suction
Rotary vane vacuum pump - MV-0063 - MARPA VACUUM S.L - lubricated / single-stage / suction - image - 2
Add to favorites
Compare this product

Characteristics

Technology
rotary vane
Lubrication
lubricated
Number of stages
single-stage
Applications
suction
Ultimate vacuum

0.1 mbar
(0 psi)

Flow rate

63 m³/h, 75 m³/h
(2,224.82 ft³/h, 2,648.6 ft³/h)

Power

1.5 kW, 2.2 kW
(2.04 hp, 2.99 hp)

Operating temperature

Max.: 80 °C
(176 °F)

Min.: 12 °C
(54 °F)

Length

654 mm
(26 in)

Width

412 mm
(16.22 in)

Height

302 mm
(11.89 in)

Noise level

65 dB, 68 dB

Weight

64 kg
(141.1 lb)

Description

is a robust vacuum pump used in industrial applications. Its robust design makes it the right choice for 24-hour operation in industrial applications. It has a non-return valve on the suction flange to prevent oil and gases from flowing back into the process after the pump has stopped. Equipped with a gas-ballast valve as standard, this pump is able to extract high volumes of steam. The electric motor of the MV series boasts class IE3 efficiency.
