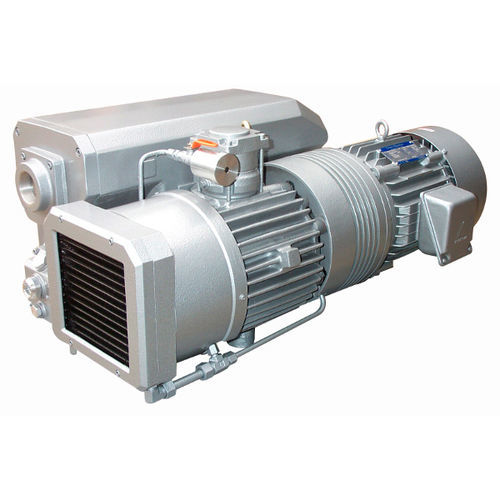

Rotary vane vacuum pump MV-0250
lubricatedsingle-stagemotor

Rotary vane vacuum pump - MV-0250 - MARPA VACUUM S.L - lubricated / single-stage / motor
Rotary vane vacuum pump - MV-0250 - MARPA VACUUM S.L - lubricated / single-stage / motor
Rotary vane vacuum pump - MV-0250 - MARPA VACUUM S.L - lubricated / single-stage / motor - image - 2
Add to favorites
Compare this product

Characteristics

Technology
rotary vane
Lubrication
lubricated
Number of stages
single-stage
Applications
suction, motor
Ultimate vacuum

0.1 mbar
(0 psi)

Flow rate

250 m³/h, 300 m³/h
(8,828.67 ft³/h, 10,594.4 ft³/h)

Power

5.5 kW, 7.5 kW
(7.48 hp, 10.2 hp)

Operating temperature

Max.: 85 °C
(185 °F)

Min.: 12 °C
(54 °F)

Length

1,006 mm
(40 in)

Width

550 mm
(21.65 in)

Height

426 mm
(16.77 in)

Noise level

74 dB, 77 dB

Weight

184 kg
(405.65 lb)

Description

The MV-0250 is a robust vacuum pump used in industrial applications. Its robust design makes it the right choice for 24-hour operation in industrial applications. It has a non-return valve on the suction flange to prevent oil and gases from flowing back into the process after the pump has stopped. Equipped with a gas-ballast valve as standard, this pump is able to extract high volumes of steam. The electric motor of the MV series boasts class IE3 efficiency.
